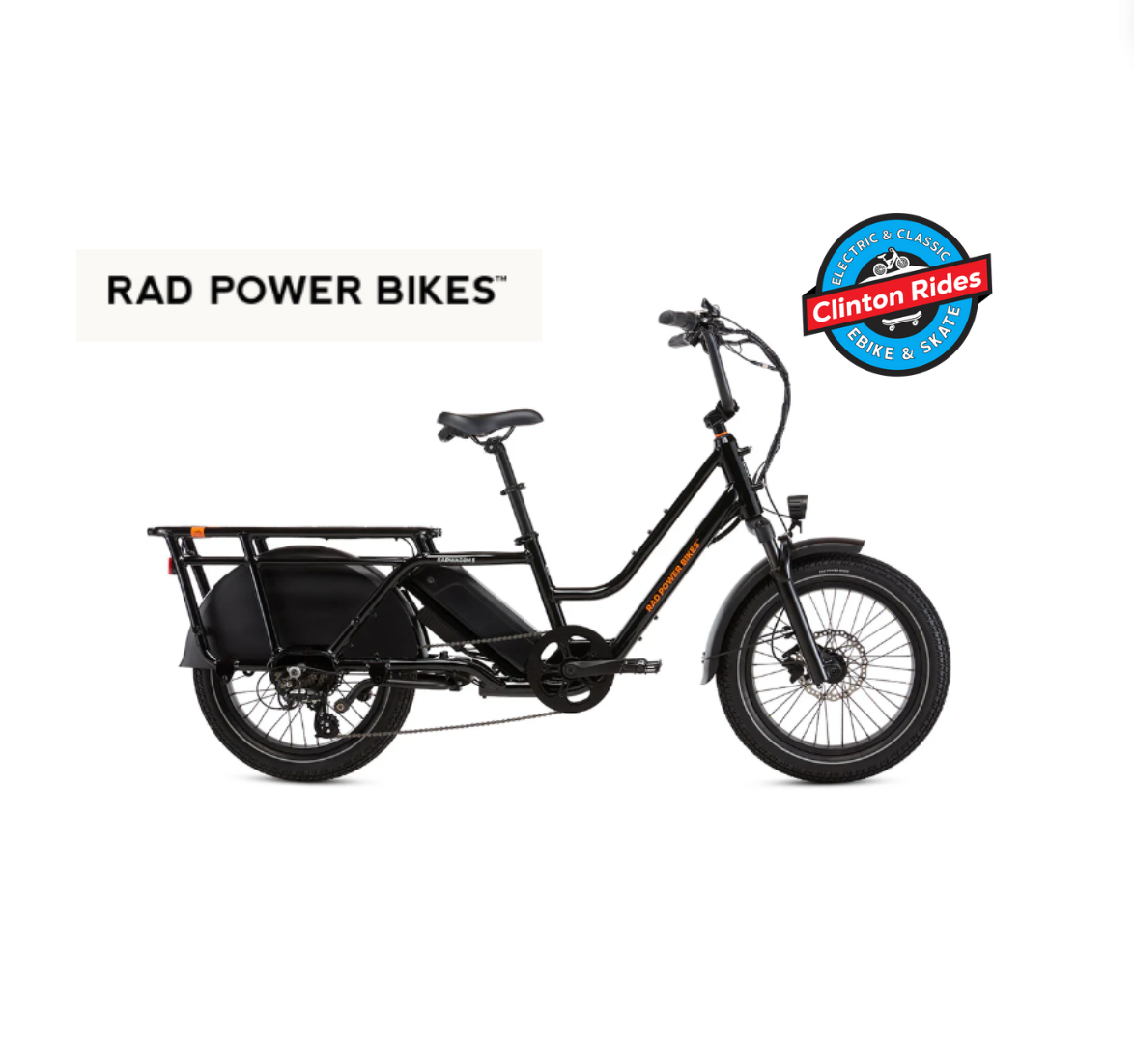

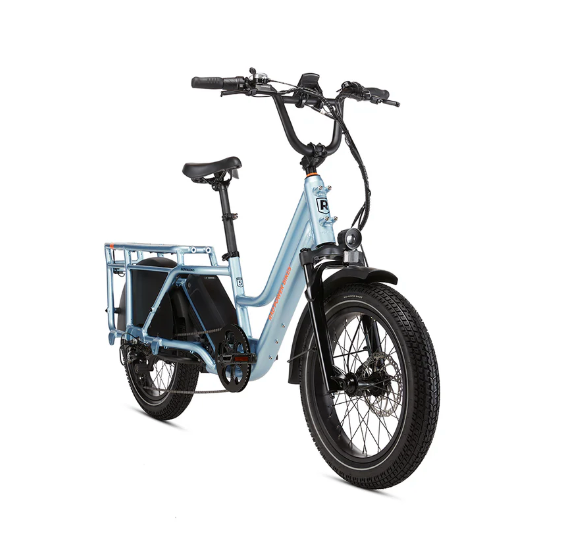

Clinton Rides & Rad Power Bikes are proud to present. The RadWagon, and it is RAD. With a massive payload of 375 lbs. Ditch that second car, get the large cargo rack for this puppy. Save thousand a month. Welcome to the future.

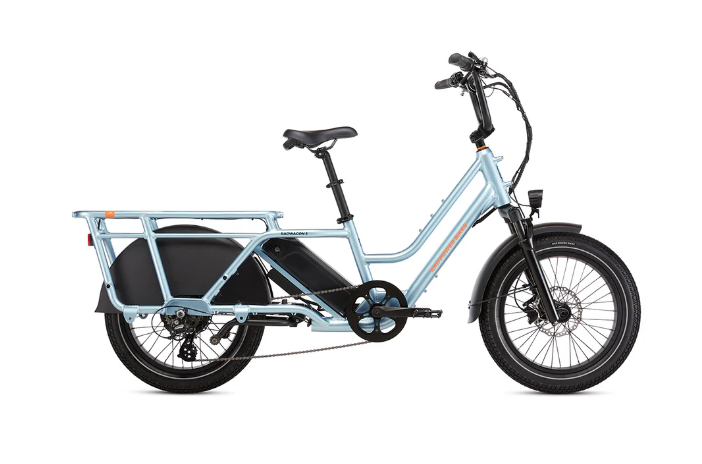

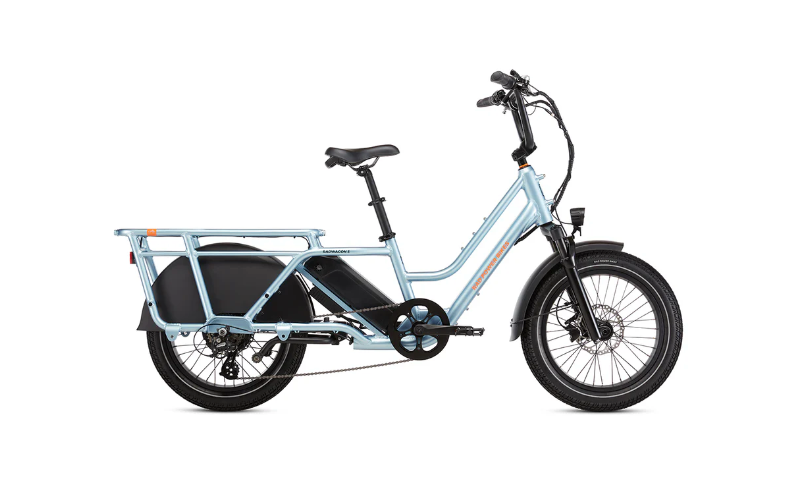

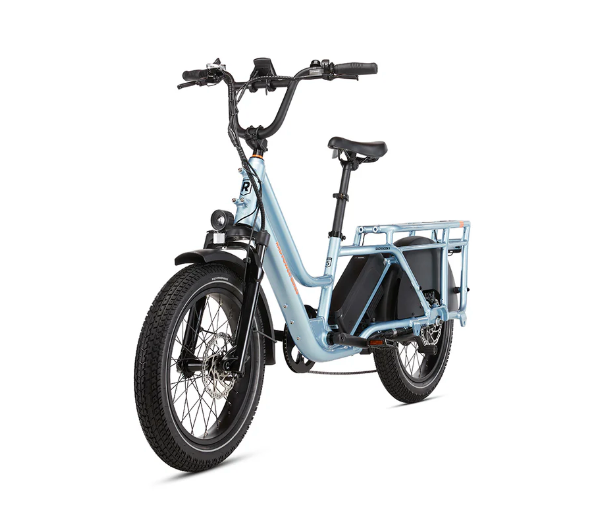

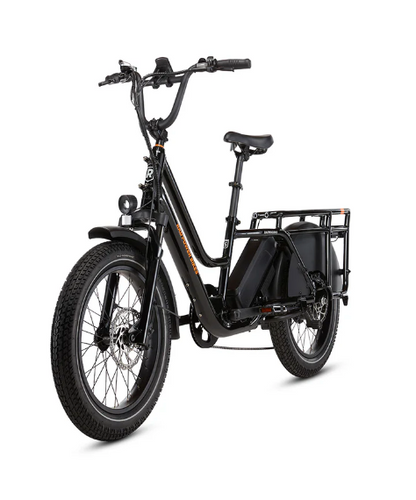

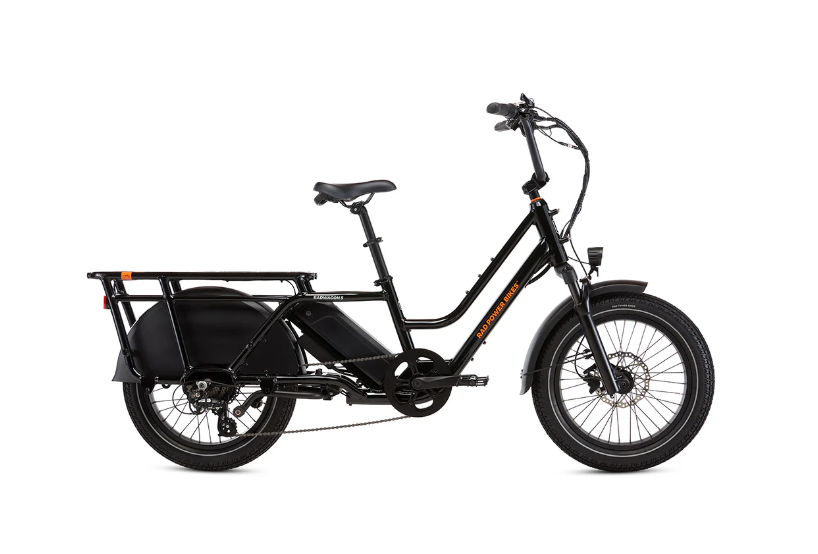

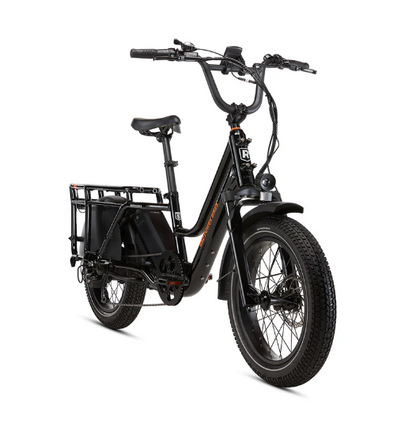

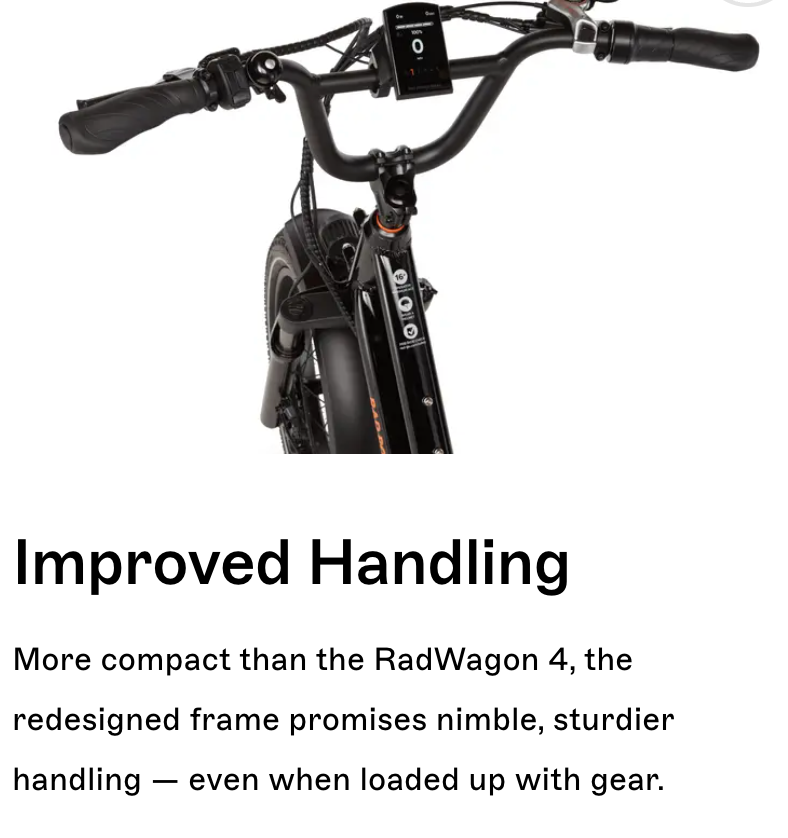

Leave the minivan behind. Our fan-favorite electric cargo bike just had a glow-up. The RadWagon 5 provides a condensed frame for better handling, a plethora of advanced safety features, and more carrying capacity than ever before. But it’s not just better for kids and cargo — it's been revamped to help riders from 4'11" to 6'3" find their fun.
Confidence. Comfort. And plenty of cargo.
Leave the minivan behind. Our fan-favorite electric cargo bike just had a glow-up. The RadWagon 5 provides a condensed frame for better handling, a plethora of advanced safety features, and more carrying capacity than ever before. But it’s not just better for kids and cargo — it's been revamped to help riders from 4'11" to 6'3" find their fun.

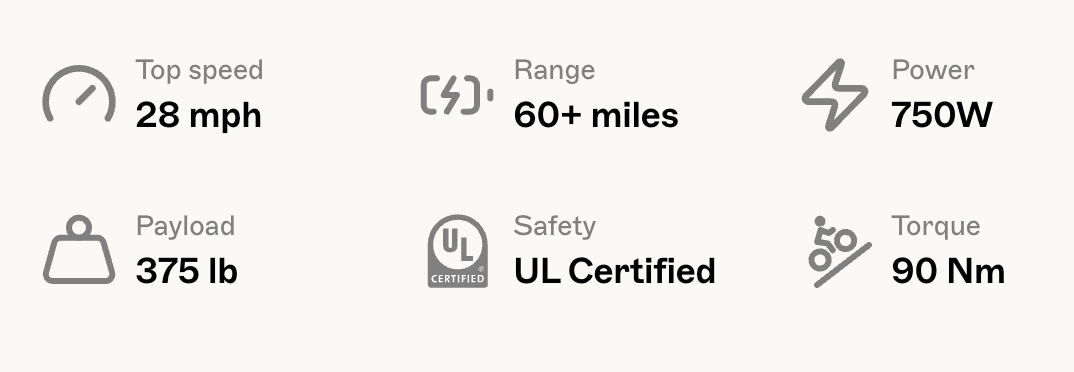

Motor: Rear hub 750W, 90 Nm
Range: Estimated 20-60 miles per charge
Rider heights: 4'11"-6'3"
Bike weight: 86 lb, 75.6 lb with battery removed
Payload: 375 lb (265 lb. max rider)
Brake Type: Hydraulic
SKU: 102-00046
Safety Certified:

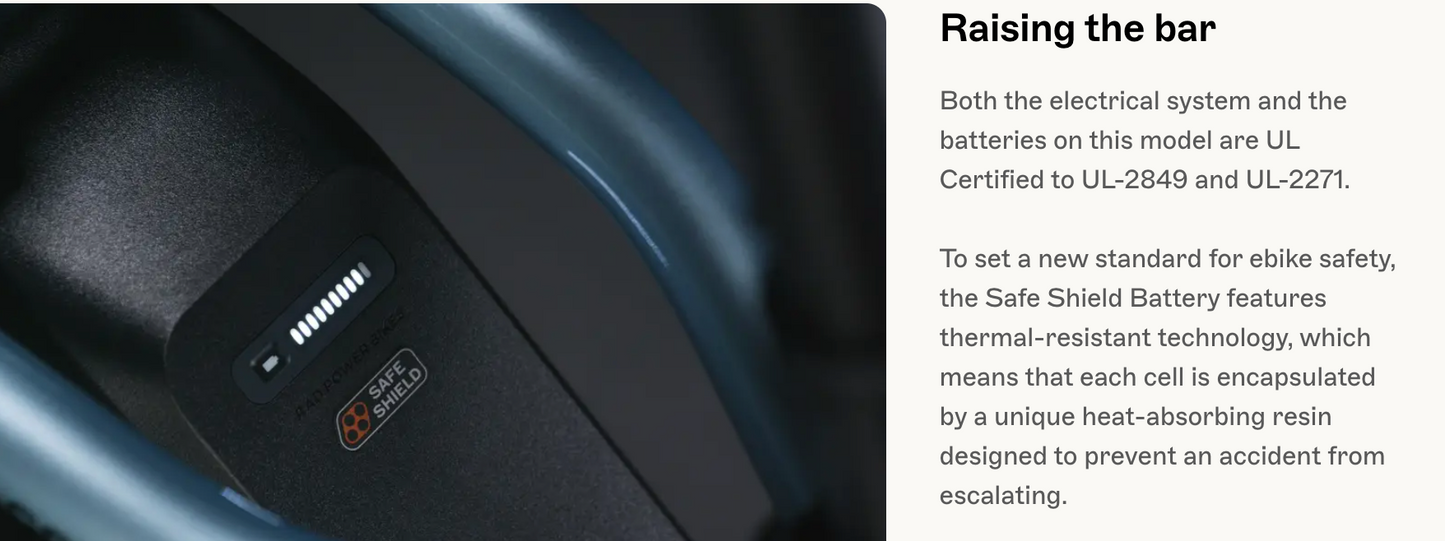

Raising the bar
Both the electrical system and the batteries on this model are UL Certified to UL-2849 and UL-2271.

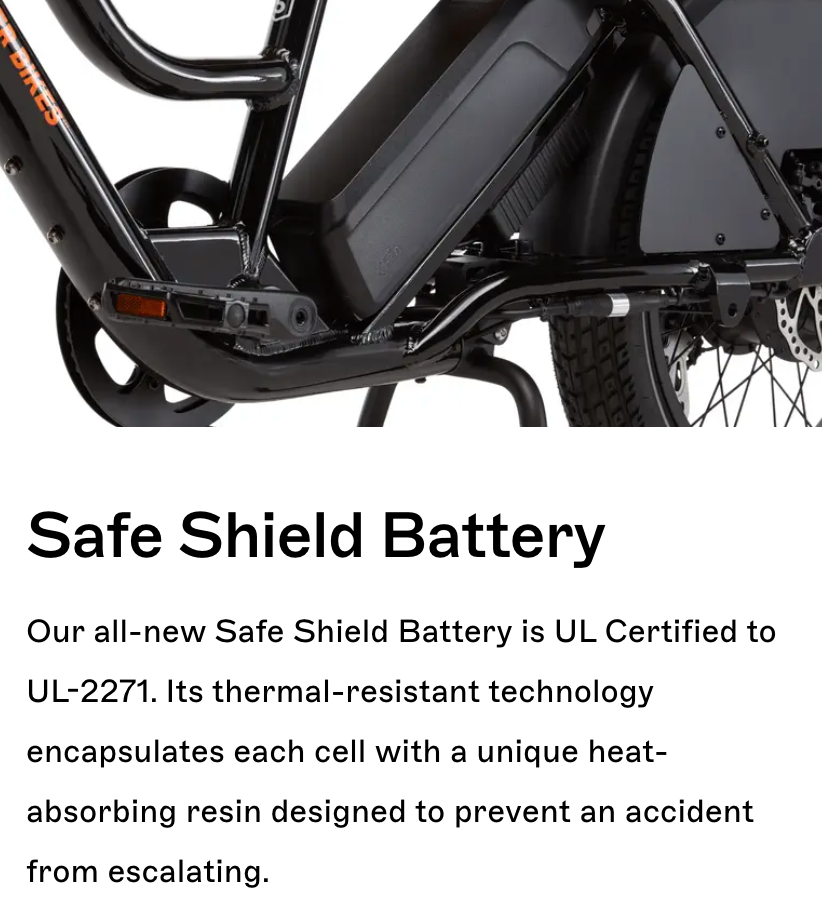

To set a new standard for ebike safety, the Safe Shield Battery features thermal-resistant technology, which means that each cell is encapsulated by a unique heat-absorbing resin designed to prevent an accident from escalating.
All eyes on you

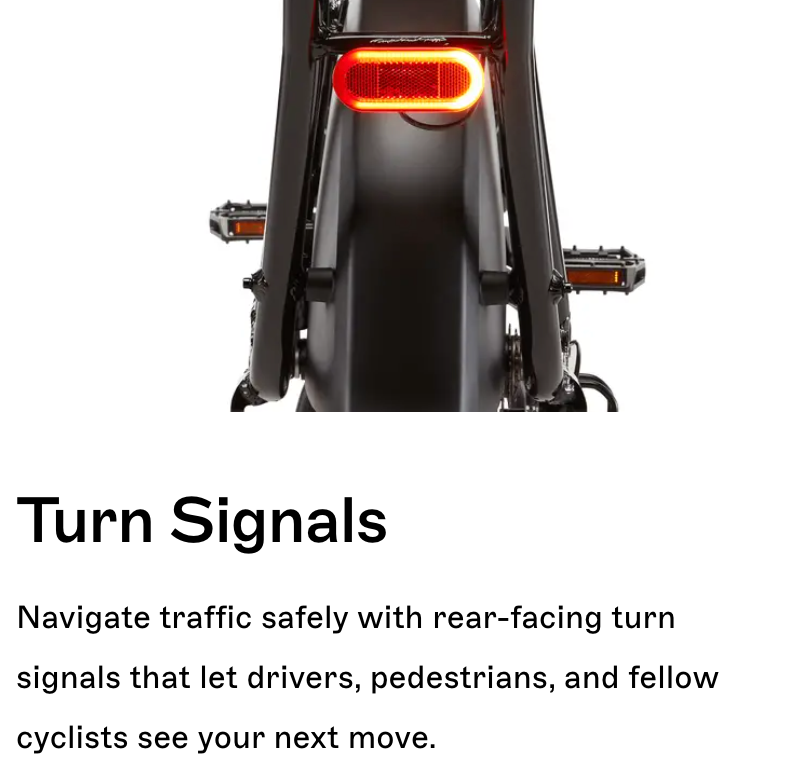

All 2024 models feature a bright 200 lumen headlight for safer night riding and rear-facing turn signals that let cars, pedestrians, and fellow cyclists know your next move.
Ride rain or shine

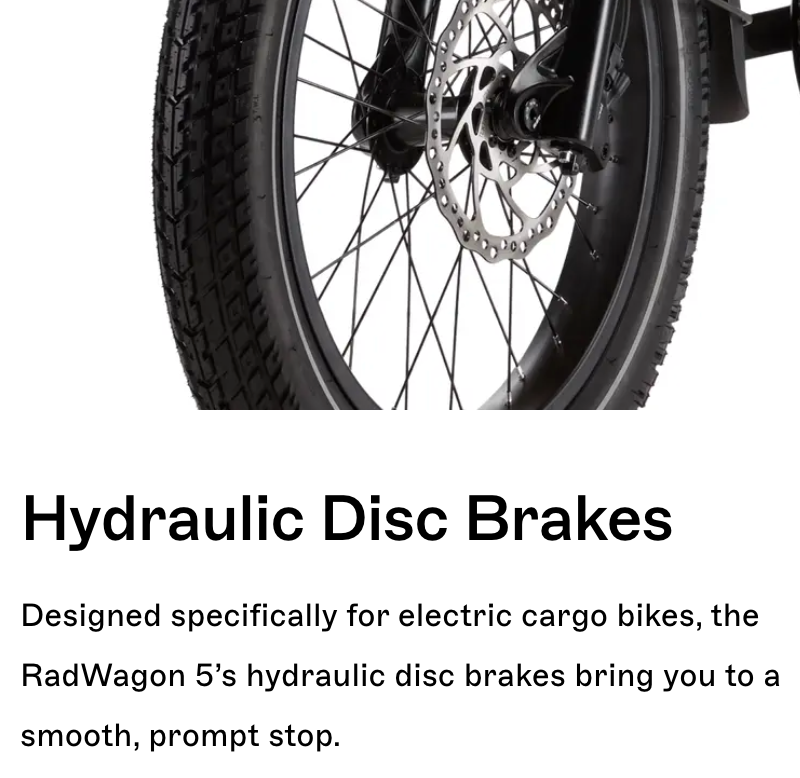

Our 2024 models are built to handle the rain. With industry-leading IPX6 weather-protection, they can withstand high-pressure, heavy water splashes. And for added safety, they’re equipped with hydraulic disc brakes to ensure all-weather stopping ability.
Reliability on wheels
Keep the ride going. This model features a thru axle to ensure a strong, safe, and secure wheel system.

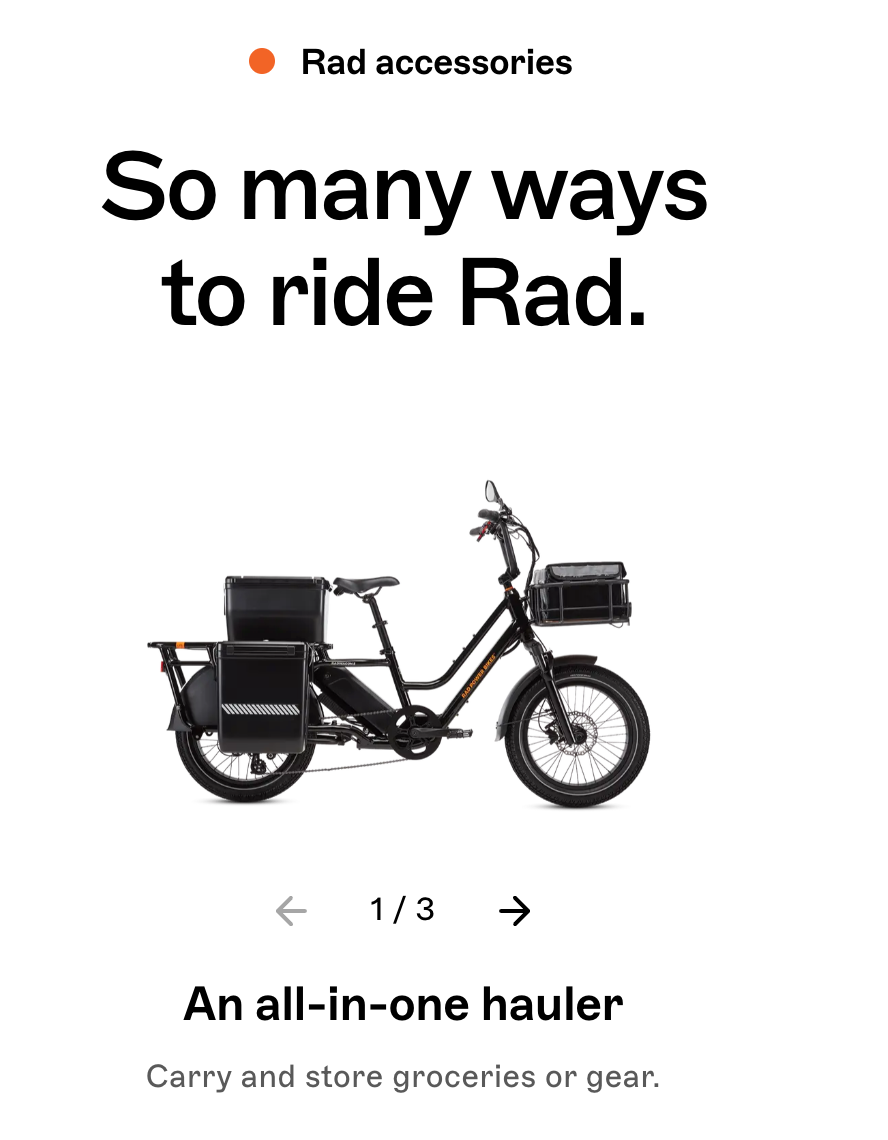

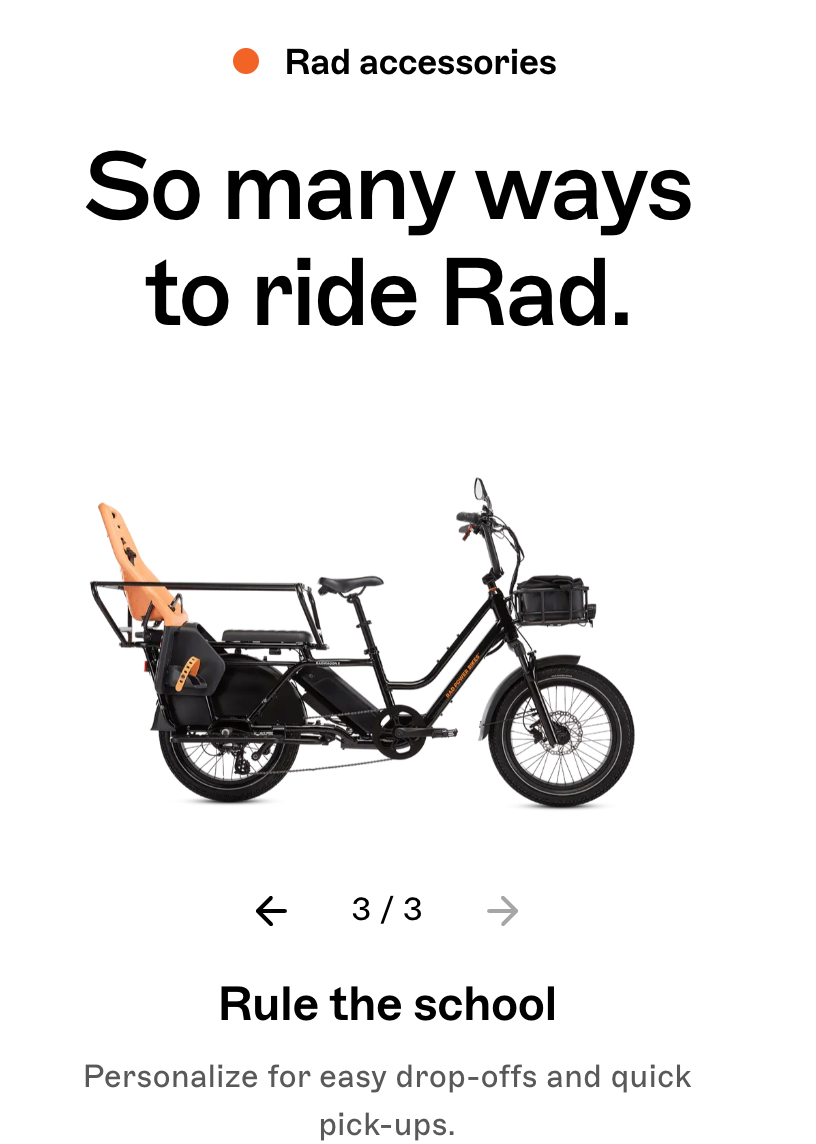

Wriggly cargo welcome

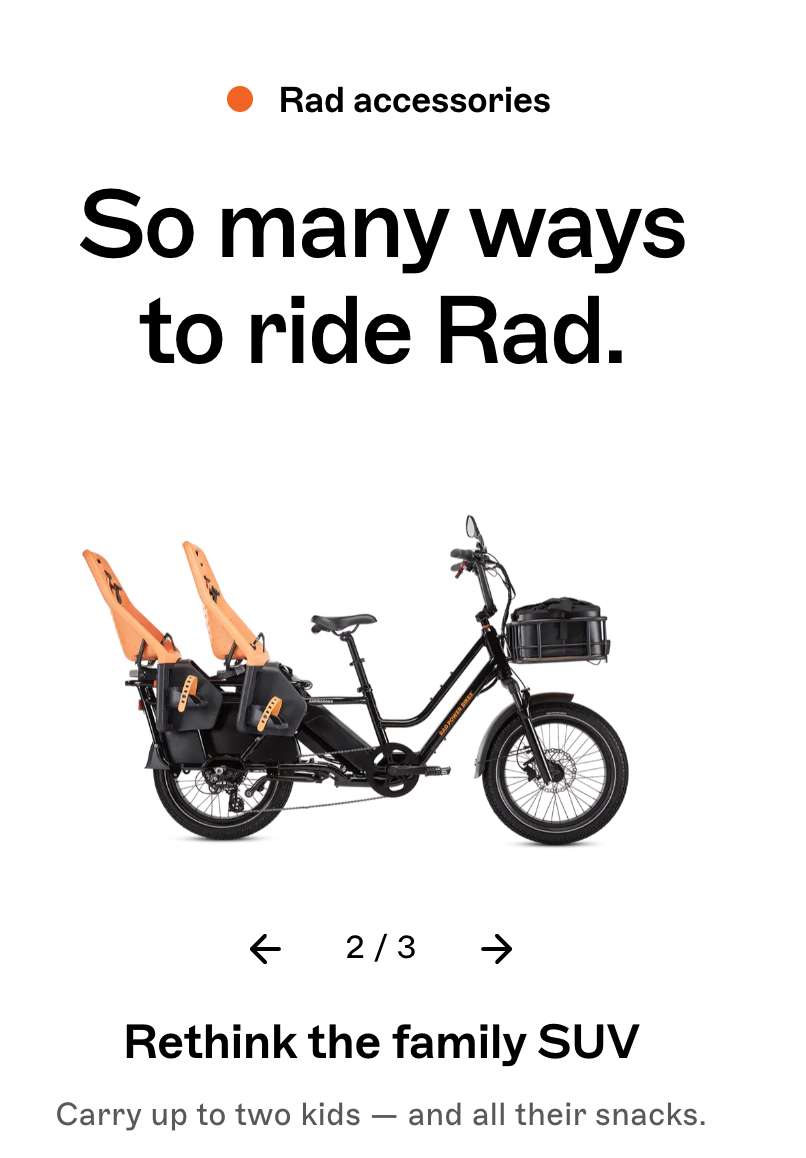

Fun fact: Parents on our design team helped develop the RadWagon 5. They’ll be the first to tell you that kids love the open-air rides. With new family-friendly accessory combos, you can customize for the perfect school drop-off or a fun weekend pick-me-up.

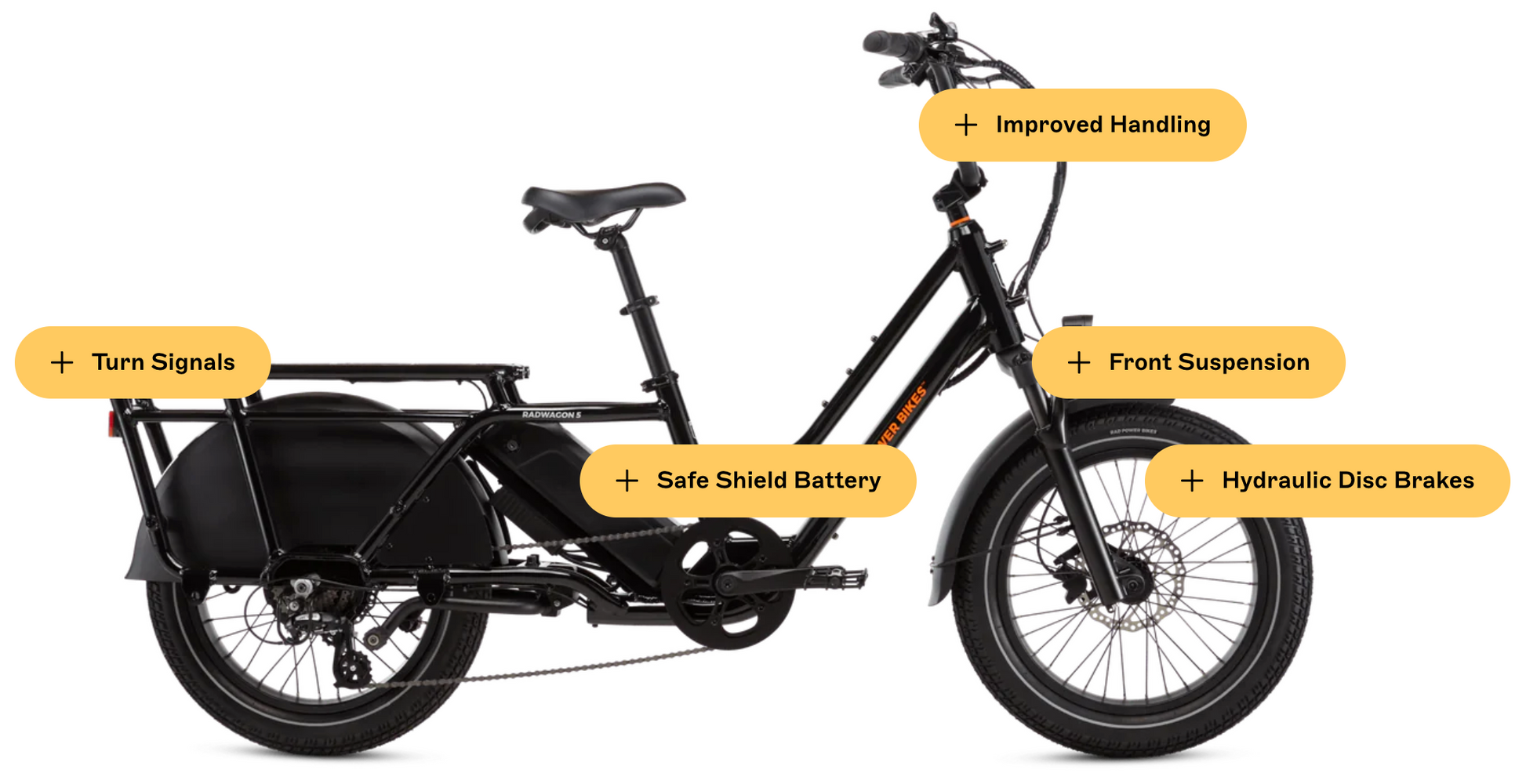

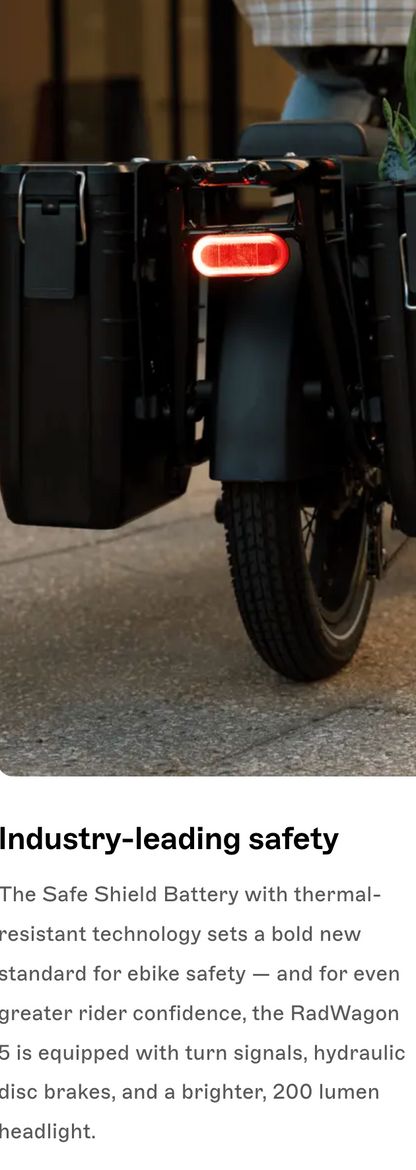

Industry-leading safety
The Safe Shield Battery with thermal-resistant technology sets a bold new standard for ebike safety — and for even greater rider confidence, the RadWagon 5 is equipped with turn signals, hydraulic disc brakes, and a brighter, 200 lumen headlight.

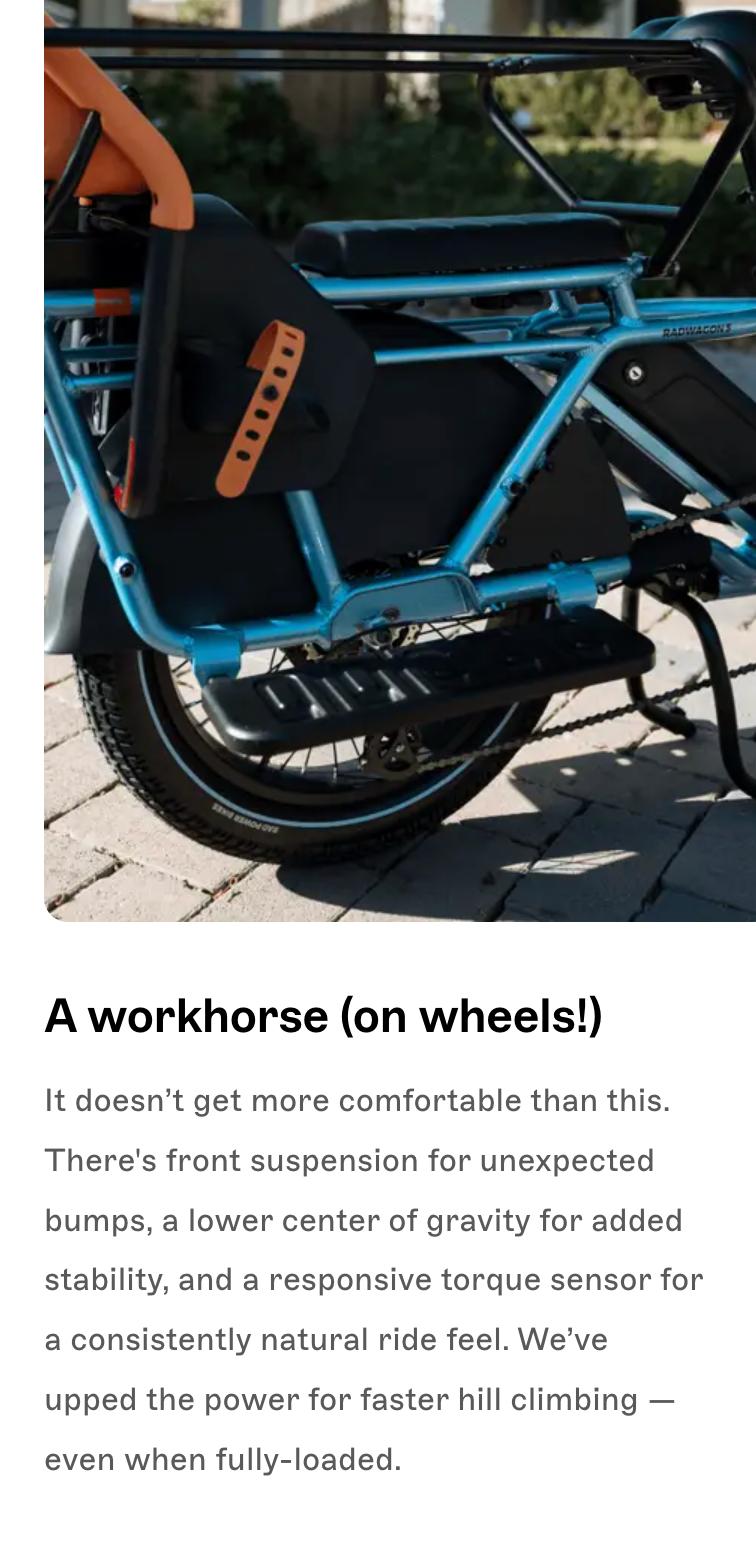

A workhorse (on wheels!)
It doesn’t get more comfortable than this. There's front suspension for unexpected bumps, a lower center of gravity for added stability, and a responsive torque sensor for a consistently natural ride feel. We’ve upped the power for faster hill climbing — even when fully-loaded.

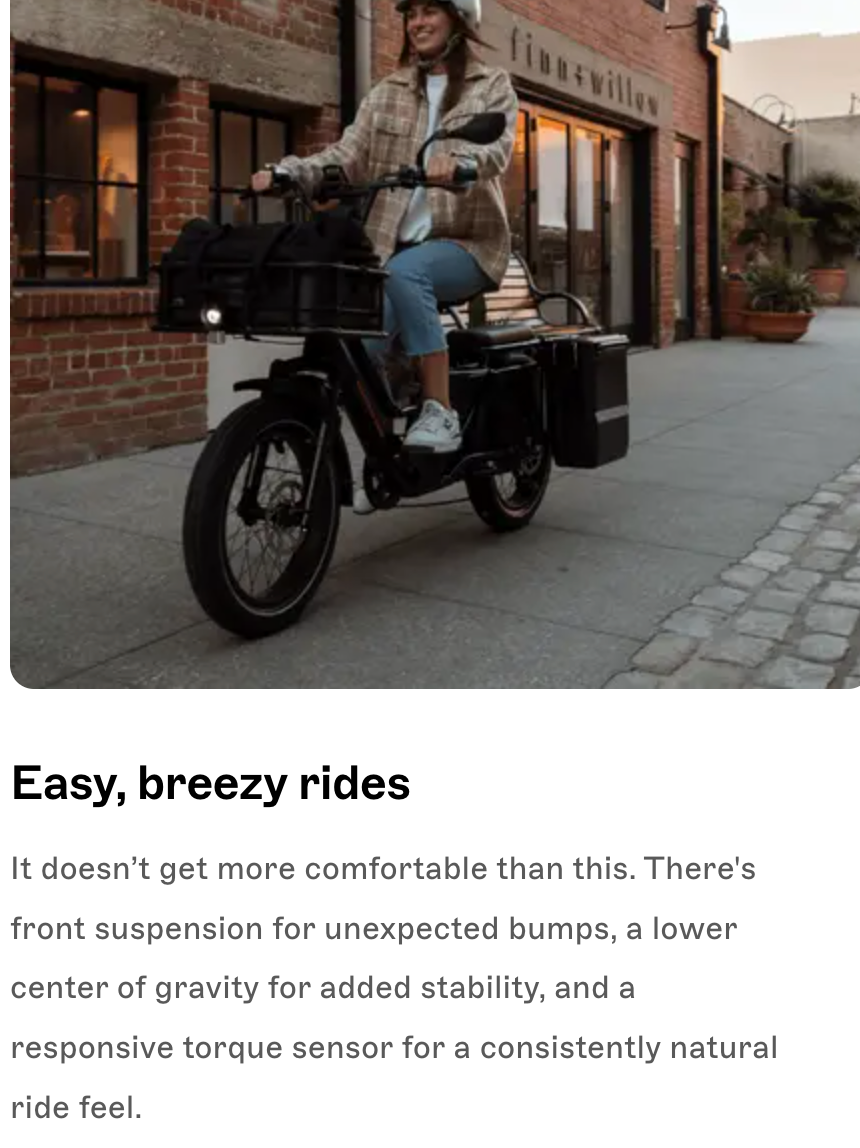

Easy, breezy rides
It doesn’t get more comfortable than this. There's front suspension for unexpected bumps, a lower center of gravity for added stability, and a responsive torque sensor for a consistently natural ride feel.
-
Battery
15Ah 720 Wh Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271
-
Class
Class switchable 1 to 3. Ships in Class 2 status.
-
Charger
48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets
-
Display
Rad custom color display. See Display section below for details.
-
Hub Motor
Rear hub 750W, 90 Nm
Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.
-
Lights
Auto-on feature
Front: ~200 lumens LED headlight with built-in reflector
Rear: Integrated taillight with brake light and turn signals
-
Pedal Assist
Torque sensor, 5 PAS Levels, plus a zero assist option
-
Range
Estimated 20-60 miles per charge
-
Throttle
Half twist throttle
-
USB Ports
One USB-C port, located on display
To ensure uninterrupted shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
-
Bell
Yes
-
Brake System
Tektro Hydraulic Disc HD-E395
-
Brake Pads
Tektro Semi-Metallic E11.11
-
Brake Rotors
180 mm x 2.3mm
-
Crank Set
50T with dual sided chain ring cover, 170mm crank arms
-
Derailleur
7-speed Shimano
-
Fenders
Full coverage front and rear, plus integrated wheel cover
-
Fork
RST Guide suspension fork, 45mm travel, tapered steerer tube, thru axle
-
Frame
Aluminum
-
Freewheel/Cassette
7-speed freewheel, 11-34T
-
Gearing
1x7 speed
-
Grips
Ergonomic rubber comfort grips
-
Handlebar
Aluminum, 680 mm wide
-
Kickstand
Dual leg center stand, spring loaded, steel
-
Pedals
Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading
-
Rear Rack
Integrated, 120 lb (54.4 kg) carrying capacity
-
Saddle
Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides
-
Seatpost
390 mm x 27.2 mm
-
Seatpost Clamp
40 mm
-
Shifter
Shimano, 7-speed thumb shifter
-
Stem
35mm A-head
-
Tires
Kenda 20" x 3.3"
To ensure uninterrupted shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
Geometry
| Title |
Text |
| Rider Heights |
4'11"-6'3" (150-190 cm) |
| Bike Weight |
86 lb (39 kg), 75.6 lb (34.3 kg) with battery removed |
| Payload |
375 lb, 265 lb max rider weight |
| Rear Rack Payload |
120 lb (54.4 kg) |
| Handlebar Height |
44" (111.8 cm) |
| Reach |
14.2" (36 cm) |
| Seat Height |
From ground: 30.5" - 41.8" (77.5 - 106.1 cm)
From pedal bottom stroke: 25" - 37" (64 - 94 cm) |
| Stepover Height |
19.8" (50.3 cm) |
| Standover Height |
21" (53.3 cm) |
| Total Length |
76" (193 cm) |
| Wheelbase |
50.7" (128.8 cm) |
| Seat Tube Length |
13.5" (34.2 cm) |

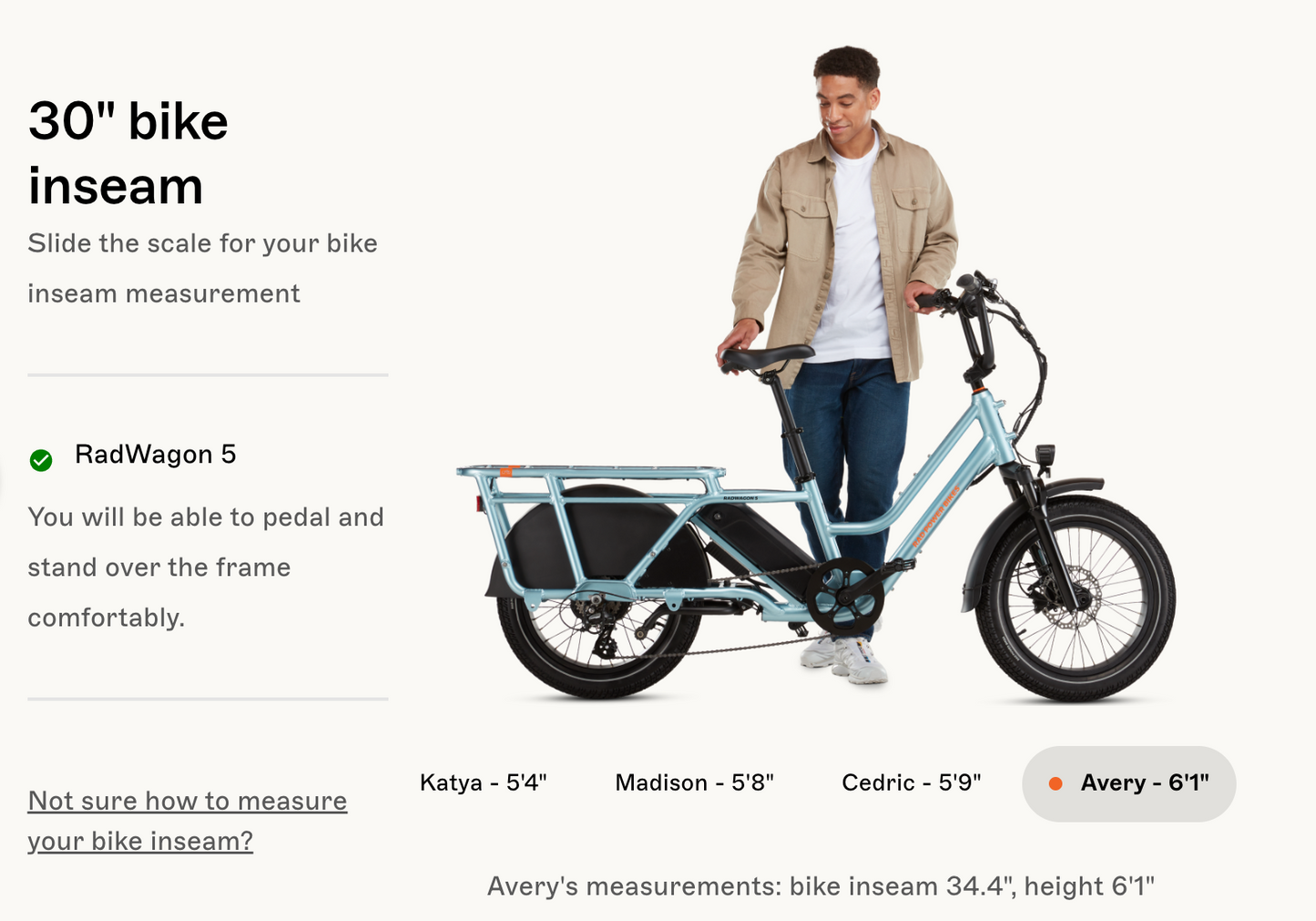

Sizing

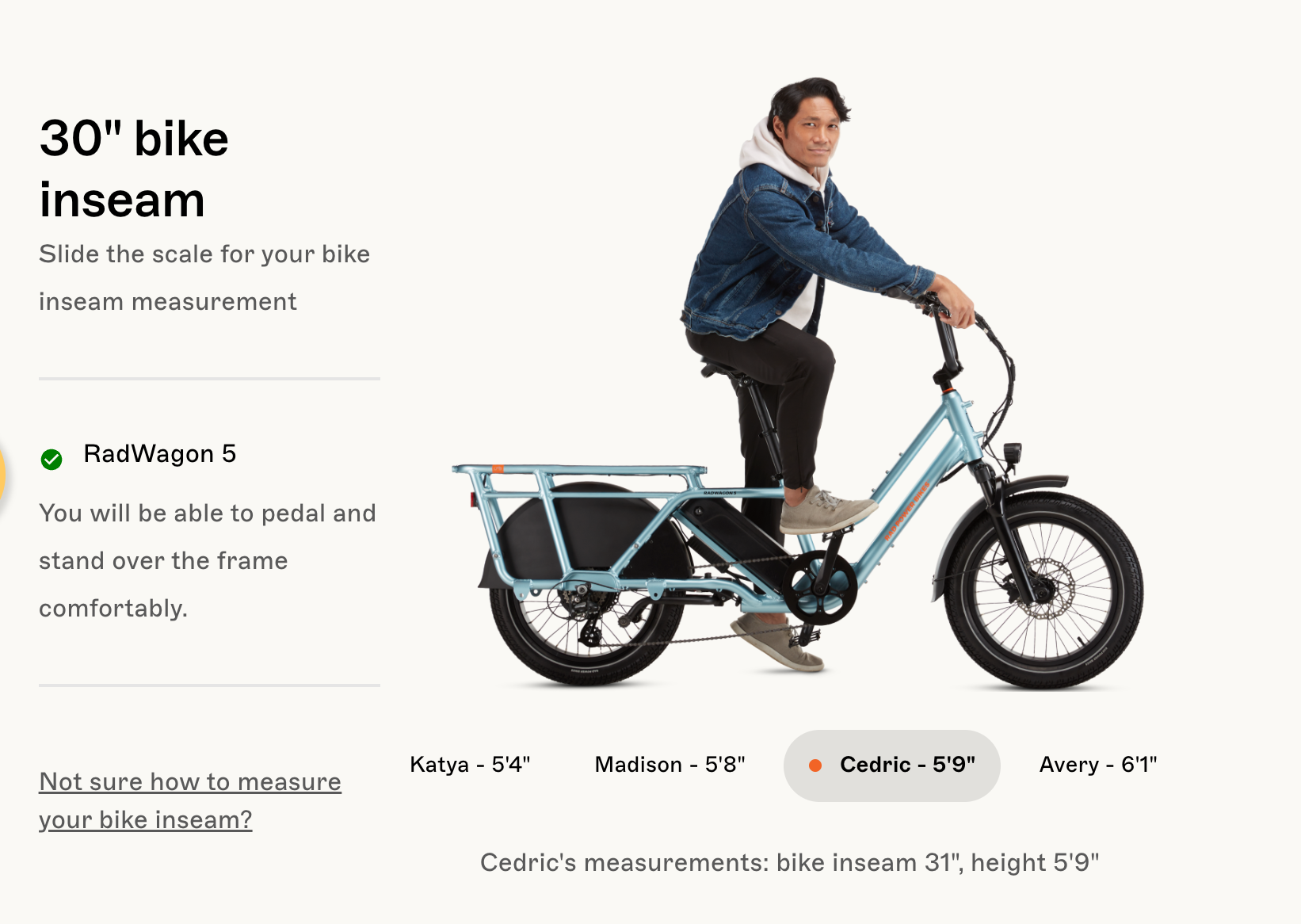

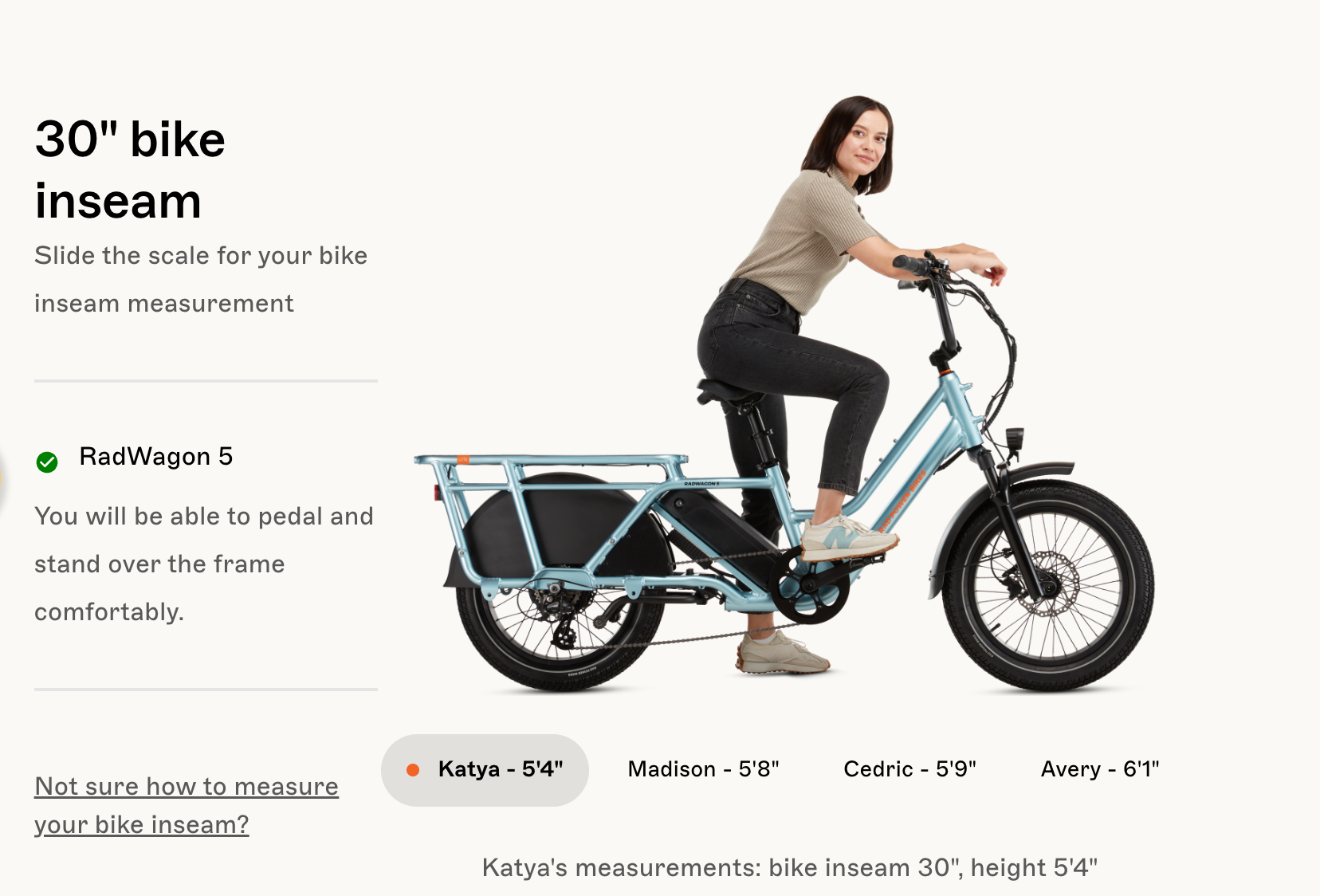

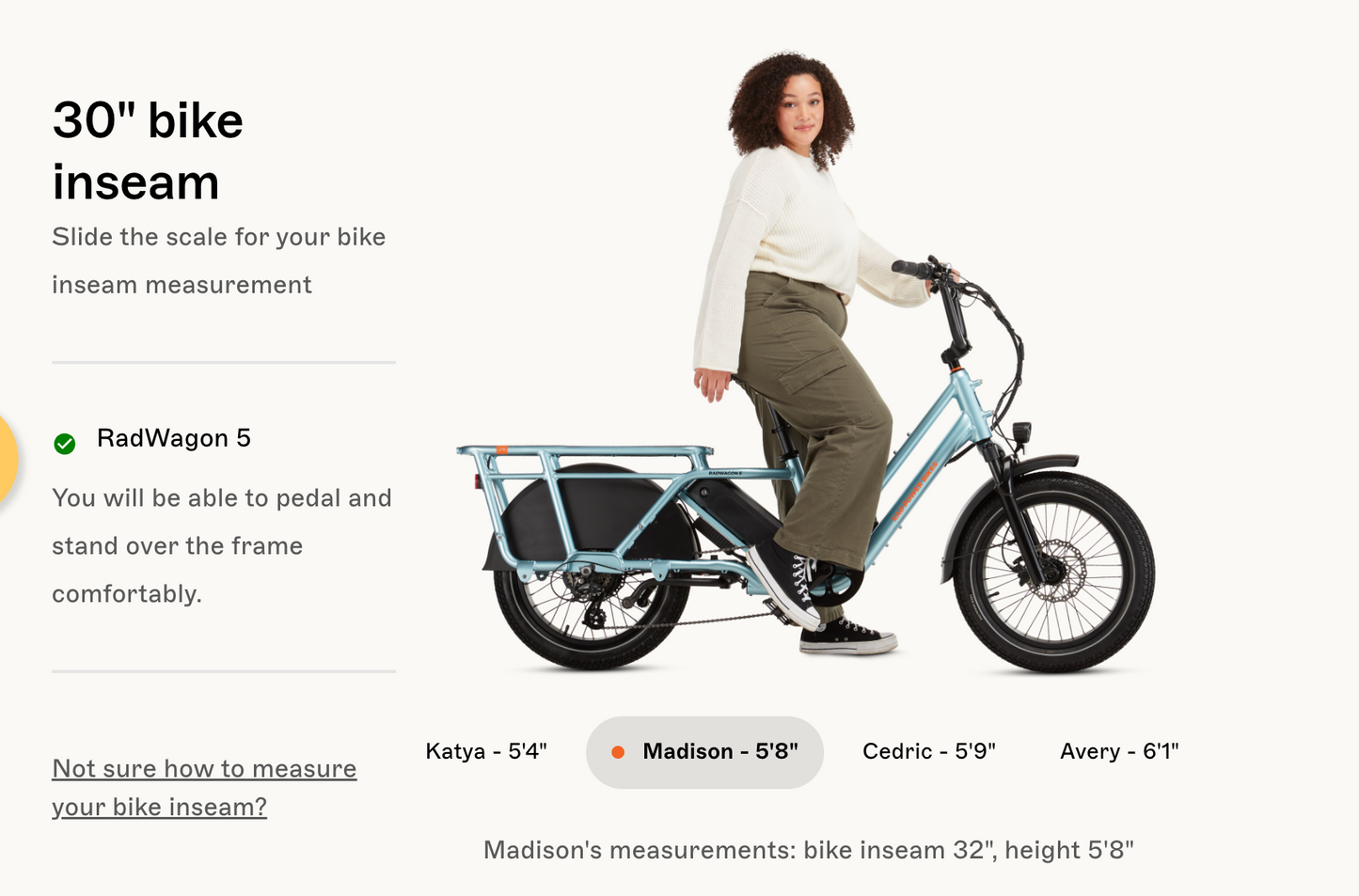

Bike inseam sizing chart(Inches)
You will not be able to ride the bike comfortably.
You will be able to pedal and stand over the frame comfortably.
Your legs may be too long to get full leg extension when pedaling.
What to Measure
Your “bike inseam” — or inside leg length — is the distance between your body where it sits on your bike saddle and the ground.
It’s typically an inch or two longer than the length of your trousers, but measure to be sure.
You’ll use this number on the chart to get a feel for how the different models will fit you.
How to Measure
Gather the tools needed:
Medium-width hardcover book
Tape measure
A wall you can stand against
A trusted friend or relative
Wearing your regular riding shoes and with your back to the wall, stand with your feet spread so there is about 7 inches between them - this is about the distance apart your feet would be when straddling a bike with your feet on the ground (standover height).
Place a hardcover book against the wall with the spine of the book facing upward. Slide the book upwards towards your groin until it is solidly against your body. This may be a bit awkward, but is way more comfortable — and safer! — than trying to ride a bike that is too big.
If you have a buddy helping you, get them to measure from the floor to the top of the book spine while you hold the book in place. If you’re going it alone, carefully hold the book in place and measure from the ground to the top of the book spine.
-
Class level
Choose speed settings for your ride:
Class 1: up to 20 mph, throttle only works while pedaling.
Class 2: up to 20 mph while pedaling or throttling.
Class 3, Limited: up to 25 mph while pedaling.
Class 3: up to 28 mph while pedaling.
Remember: adhere to posted speed limits and check local regulations for any speed or ebike class restrictions on the road or trail you're using.
-
Speedometer
Fast and Curious? The speedometer will tell you your current speed.
-
Odometer
Track the distance you’ve racked up, either by trip or through the bike’s entire lifespan.
-
Estimated remaining range
Is it time to recharge? To help you keep track, this displays your remaining battery life in either percentage or remaining miles.
-
Trip time
Did your trip feel like it was just half an hour, or did time fly by? This display will show you the time you spend on each outing. Be sure to reset your trip odometer before a ride you want to track.
-
Pedal assist level
The higher the number, the more the motor will boost you when you pedal. This shows what level you’re on, from 0 to 5.
-
Motor watts
Check out how much power the motor is supplying at any given time.
-
Headlight, taillight, and rear turn signals
It’s always a bright idea to make sure your lights are on and operating.
Note: Rear turn signals can be manually turned off or will turn off automatically two minutes into use.
-
USB charge indicator
Charging your device? This will confirm if your phone (or tablet, or smartwatch, or headphones, or …) is getting the juice it needs.
