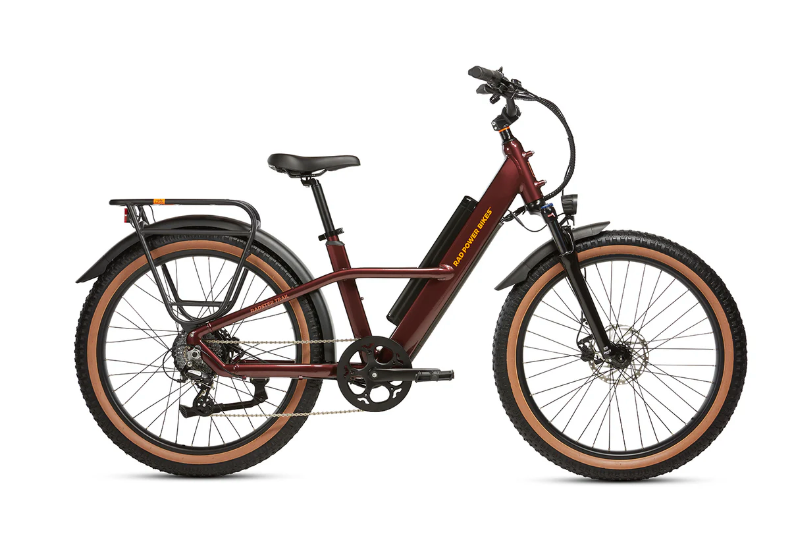

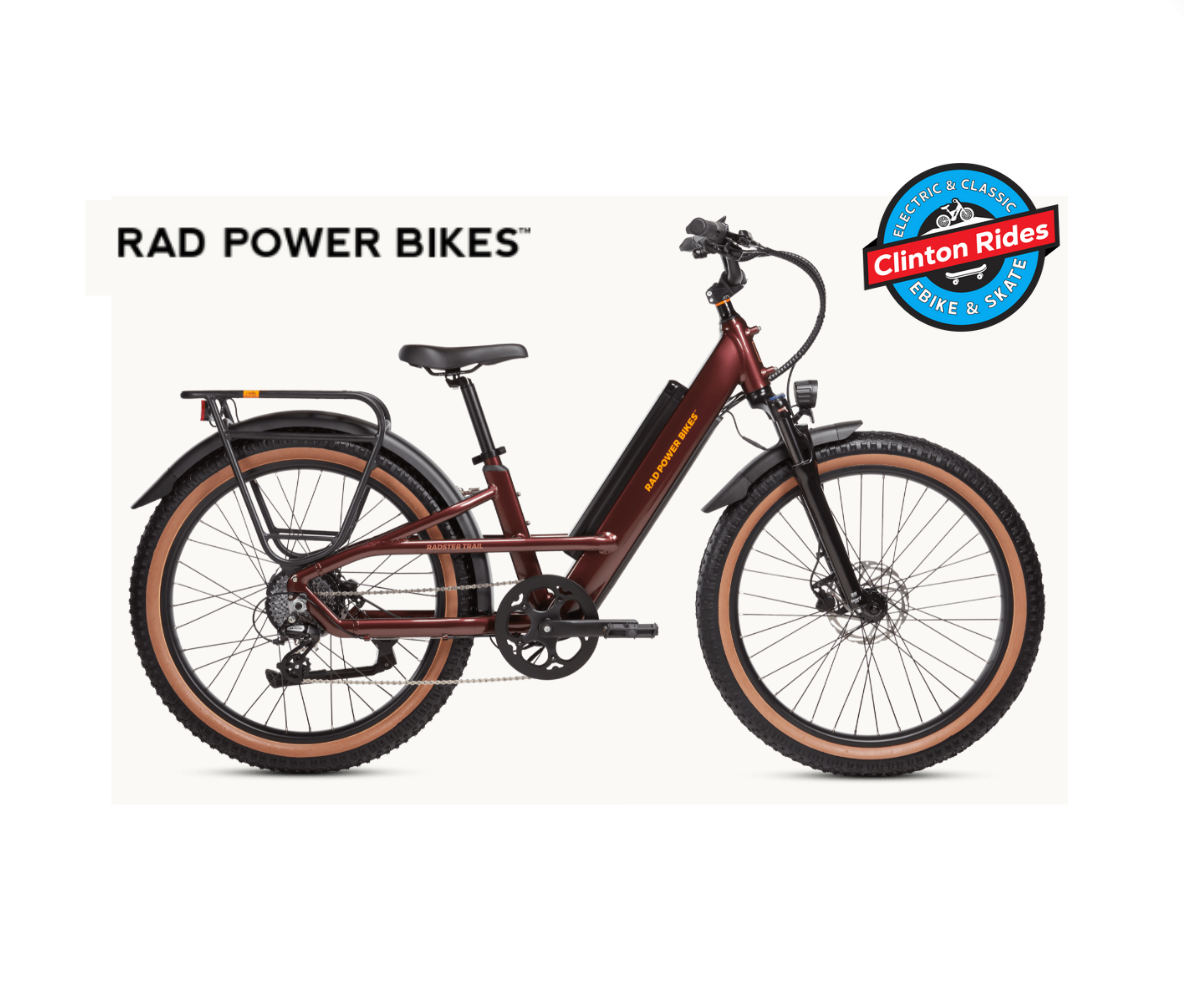

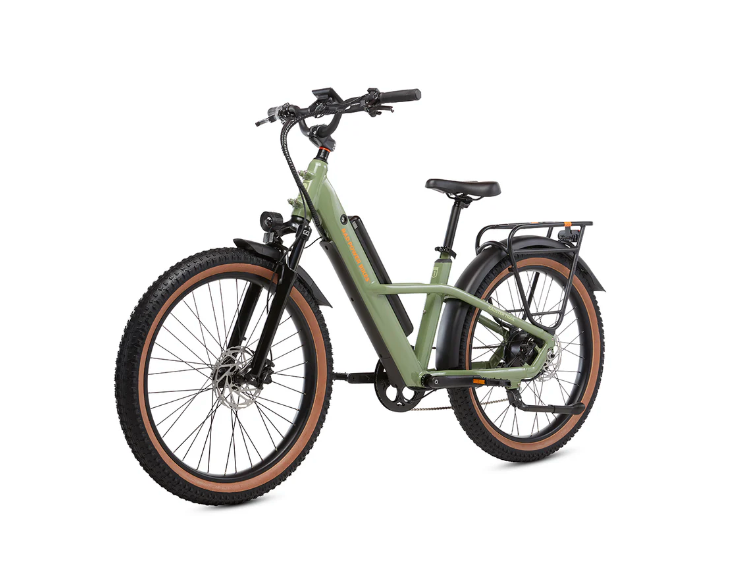

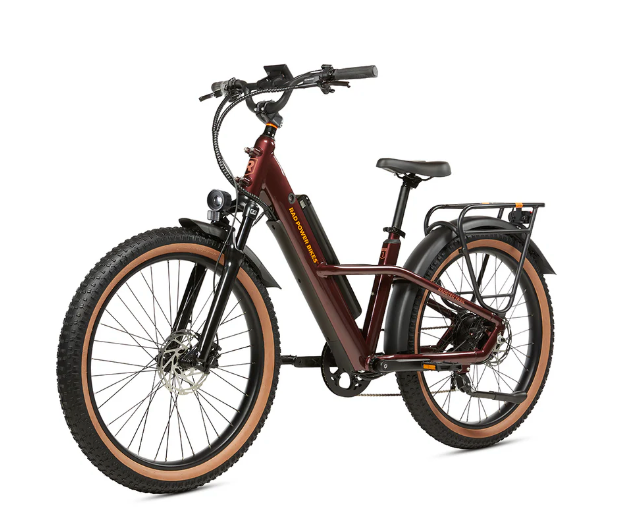

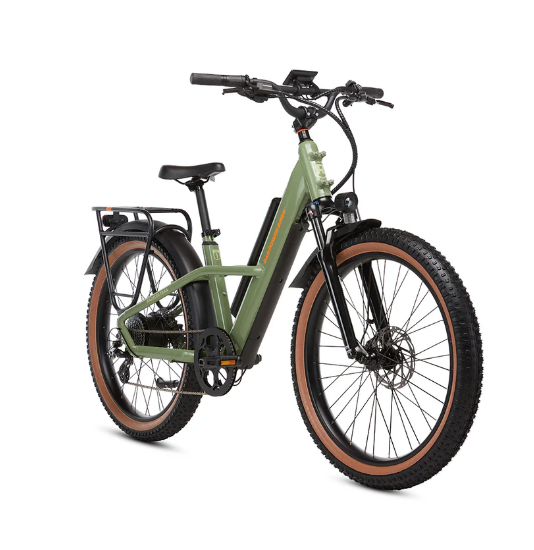

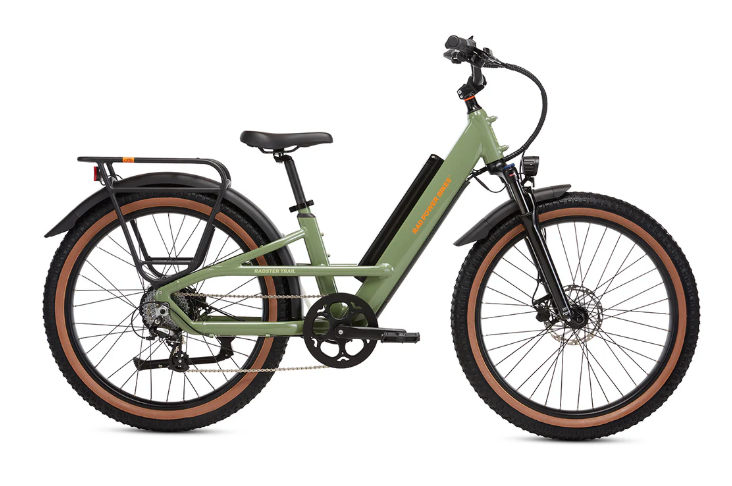

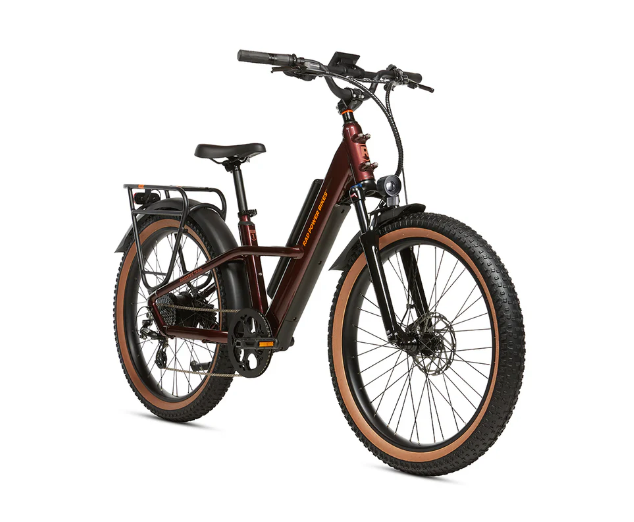

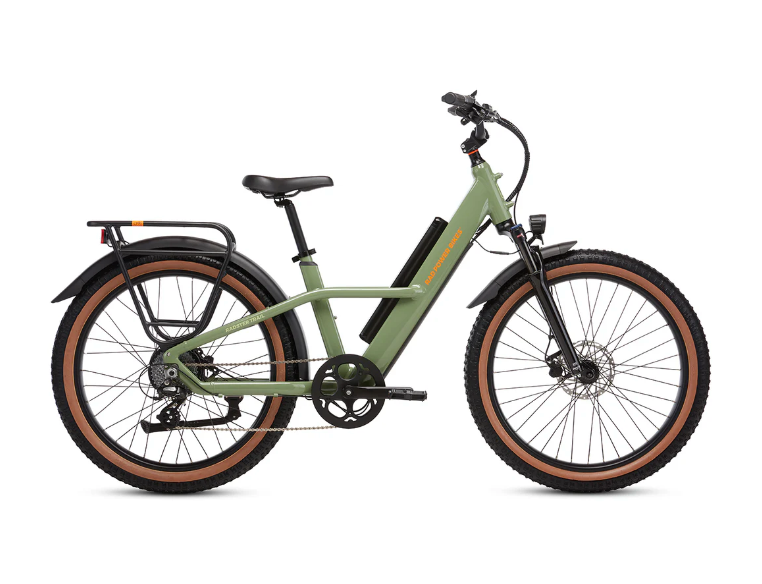

Radster™ Trail Electric Off-Road Bike (Regular: 4'11"-5'8")

This is for the REGULAR size listing. See LARGE listing of this ebike if you need the bigger sized model.

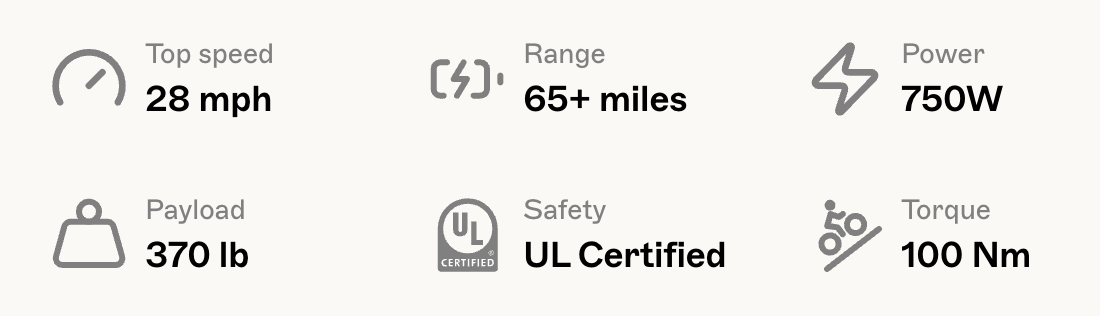

Clinton Rides & Rad Power Bike is proud to bring you an electric off-road bike with the power to do anything, and the range to go anywhere. The 100 Nm motor makes quick work of hills, the 28 mph top speed promises fast-paced fun, and with two frame sizes for a personalized fit, it’s so comfortable that you’ll barely feel like you’re roughing it.

Rider heights: Regular: 4'11"-5'8"

Bike weight, Regular: 77.5 lb, 67.5 lb with battery removed (THIS LISTING)

Bike weight, Large: 78 lb, 68 lb with battery removed (NOT THIS LISTING)

Payload: 370 lb. (290 lb. max rider)

Brake Type: Hydraulic

Motor: Rear hub 750W, 100 Nm

Range: Estimated 25-65 miles per charge

Rugged good looks are just the beginning.

The Radster Trail is an electric off-road bike with the power to do anything, and the range to go anywhere. The 100 Nm motor makes quick work of hills, the 28 mph top speed promises fast-paced fun, and with two frame sizes for a personalized fit, it’s so comfortable that you’ll barely feel like you’re roughing it.

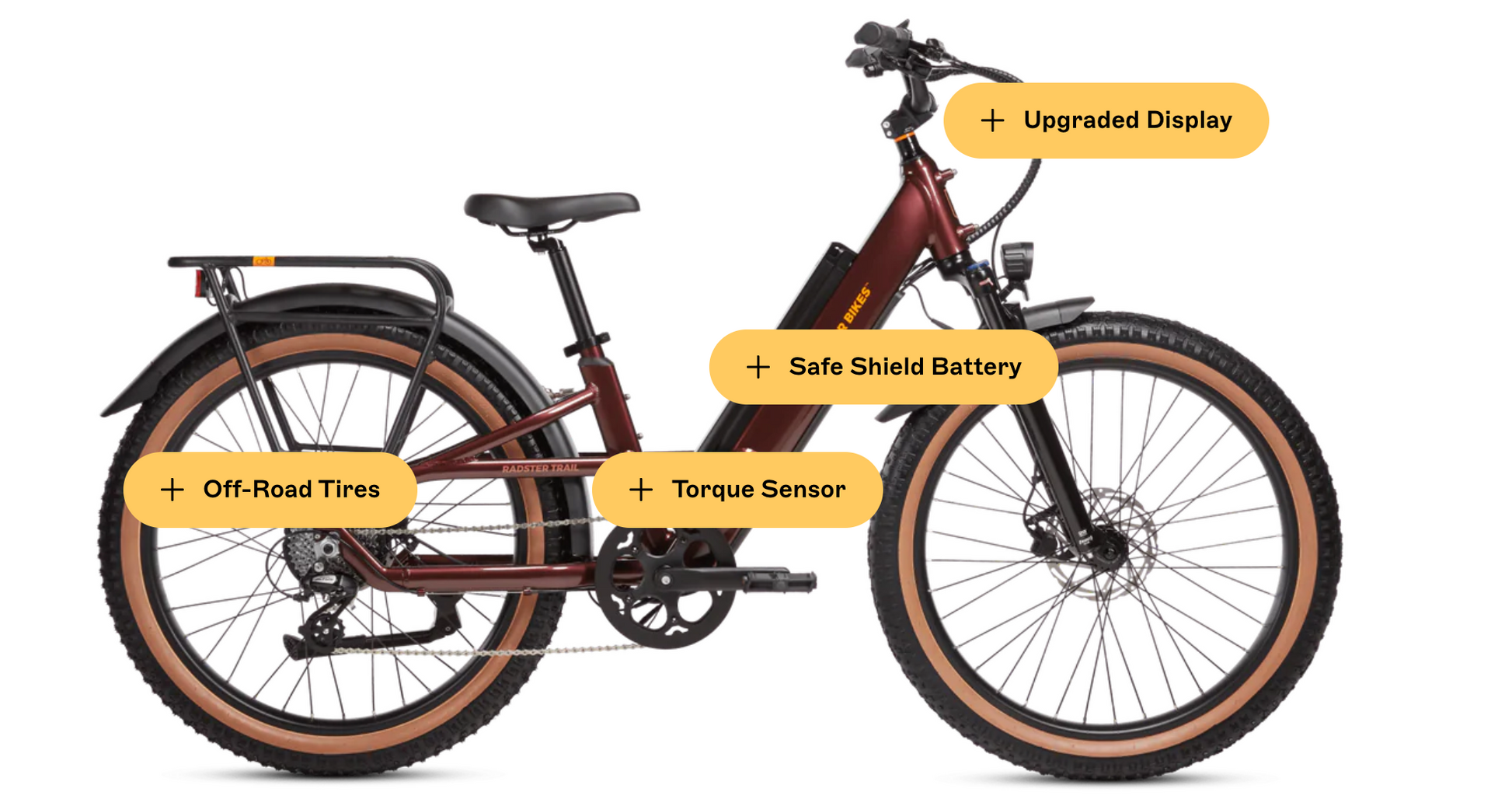

Raising the bar

Both the electrical system and the batteries on this model are UL listed to UL-2849 and UL-2271.

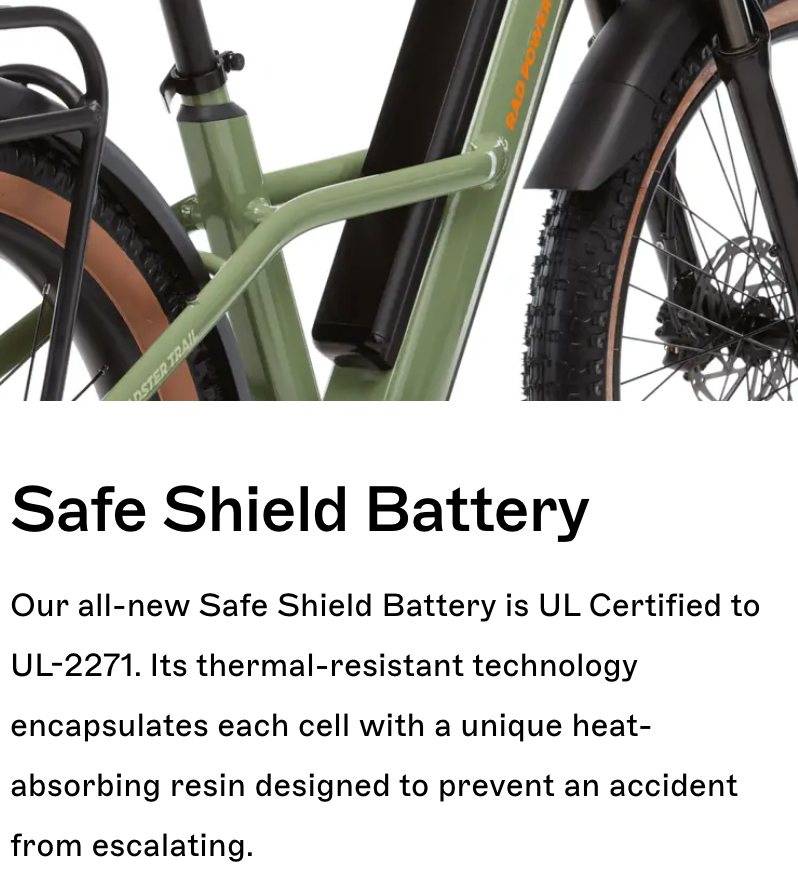

To set a new standard for ebike safety, the Safe Shield Battery features thermal-resistant technology, which means that each cell is encapsulated by a unique heat-absorbing resin designed to prevent an accident from escalating.

All eyes on you

All 2024 models feature a bright 200 lumen headlight for safer night riding and rear-facing turn signals that let cars, pedestrians, and fellow cyclists know your next move.

Ride rain or shine

Our 2024 models are built to handle the rain. With industry-leading IPX6 weather-protection, they can withstand high-pressure, heavy water splashes. And for added safety, they’re equipped with hydraulic disc brakes to ensure all-weather stopping ability

Reliability on wheels

Keep the ride going. This model features a thru axle to ensure a strong, safe, and secure wheel system.

Feel natural

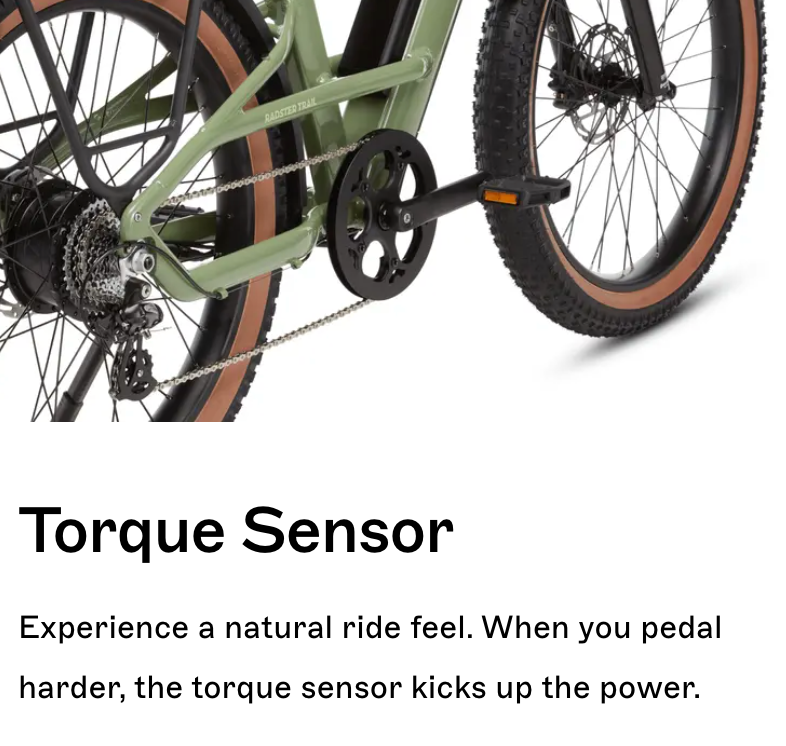

Experience smooth rides on any terrain with a torque sensor that responds to the way you pedal, added power for effortless hill climbing, and hydraulic disc brakes that bring you to a prompt, graceful stop.

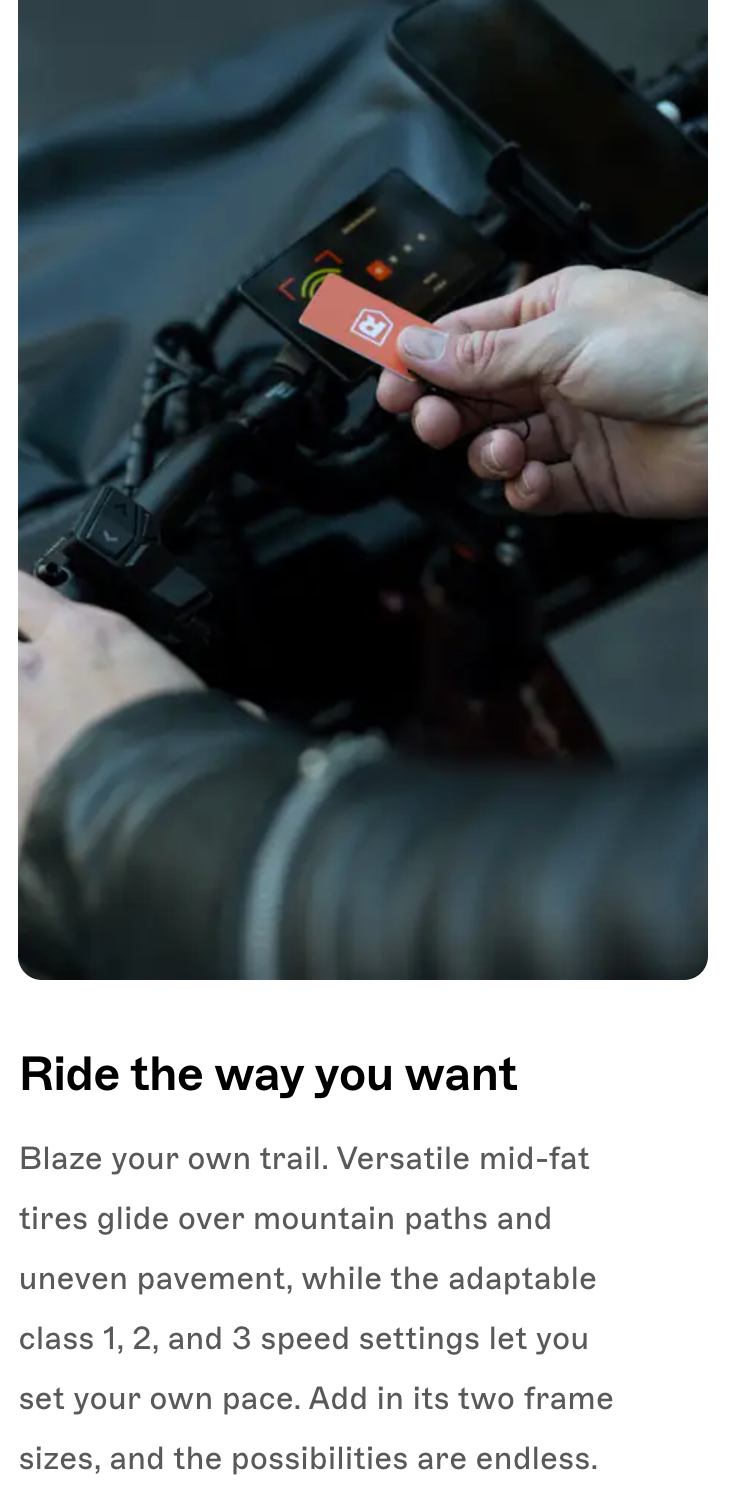

Ride the way you want

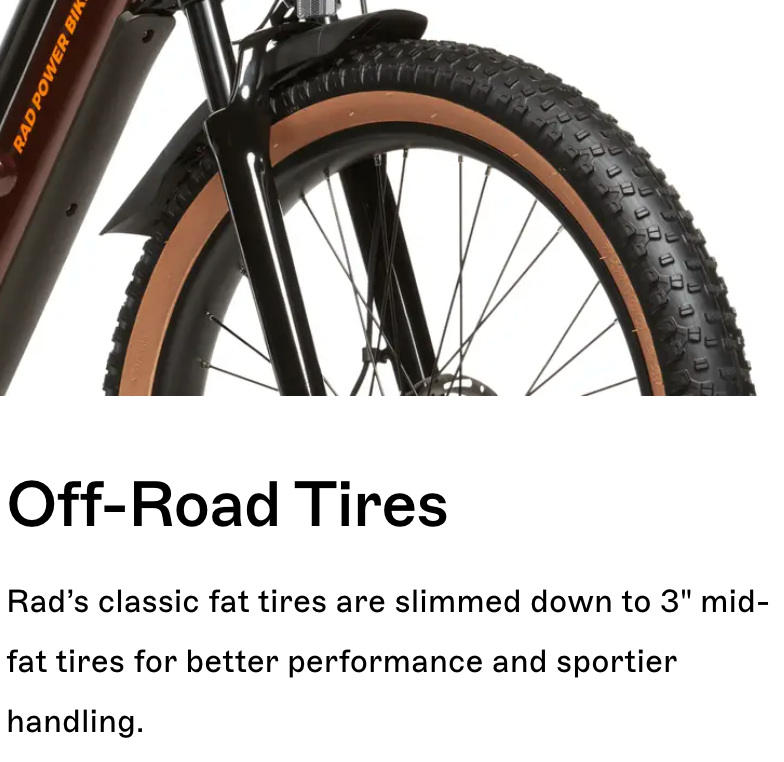

Blaze your own trail. Versatile mid-fat tires glide over mountain paths and uneven pavement, while the adaptable class 1, 2, and 3 speed settings let you set your own pace. Add in its two frame sizes, and the possibilities are endless.

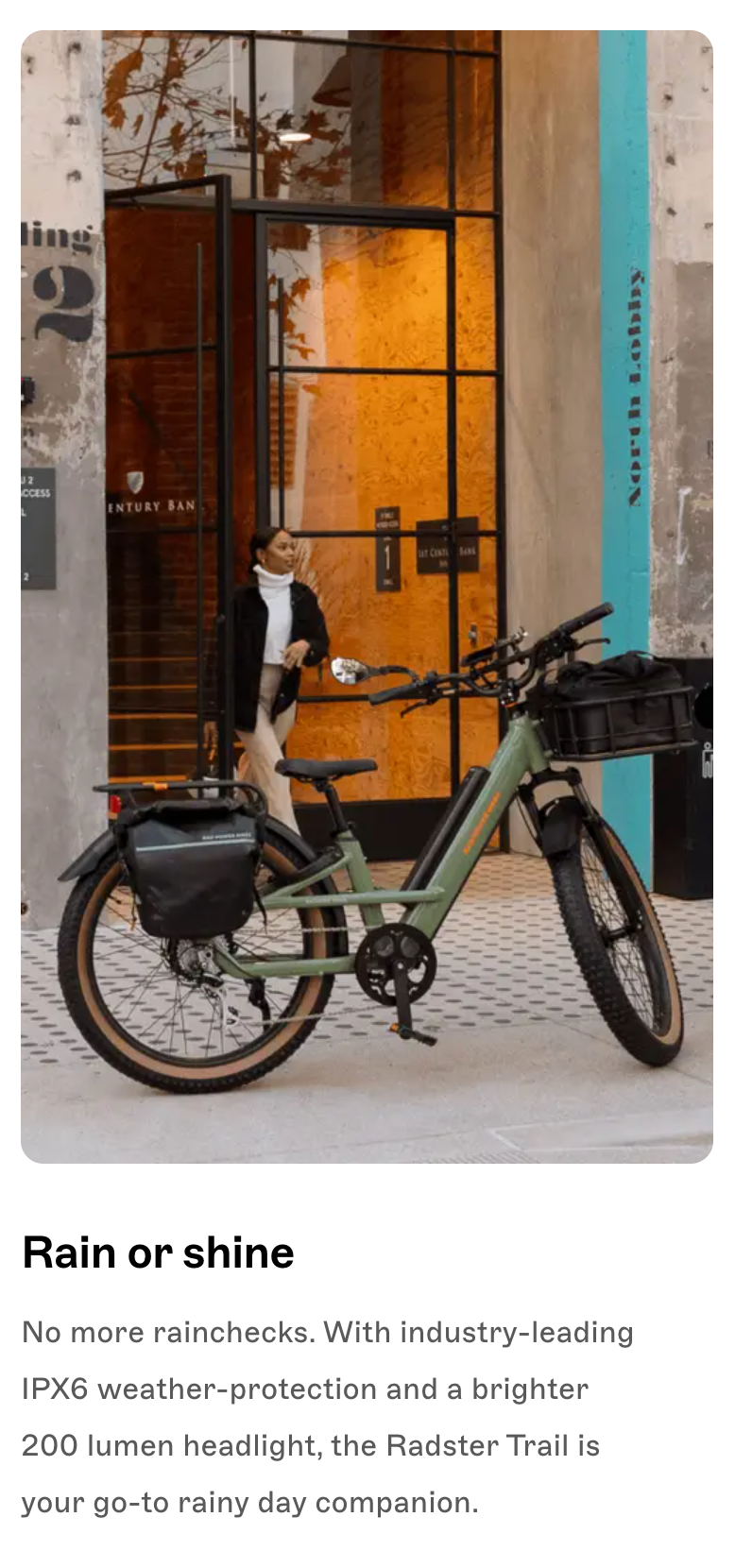

Rain or shine

No more rainchecks. With industry-leading IPX6 weather-protection and a brighter 200 lumen headlight, the Radster Trail is your go-to rainy day companion.

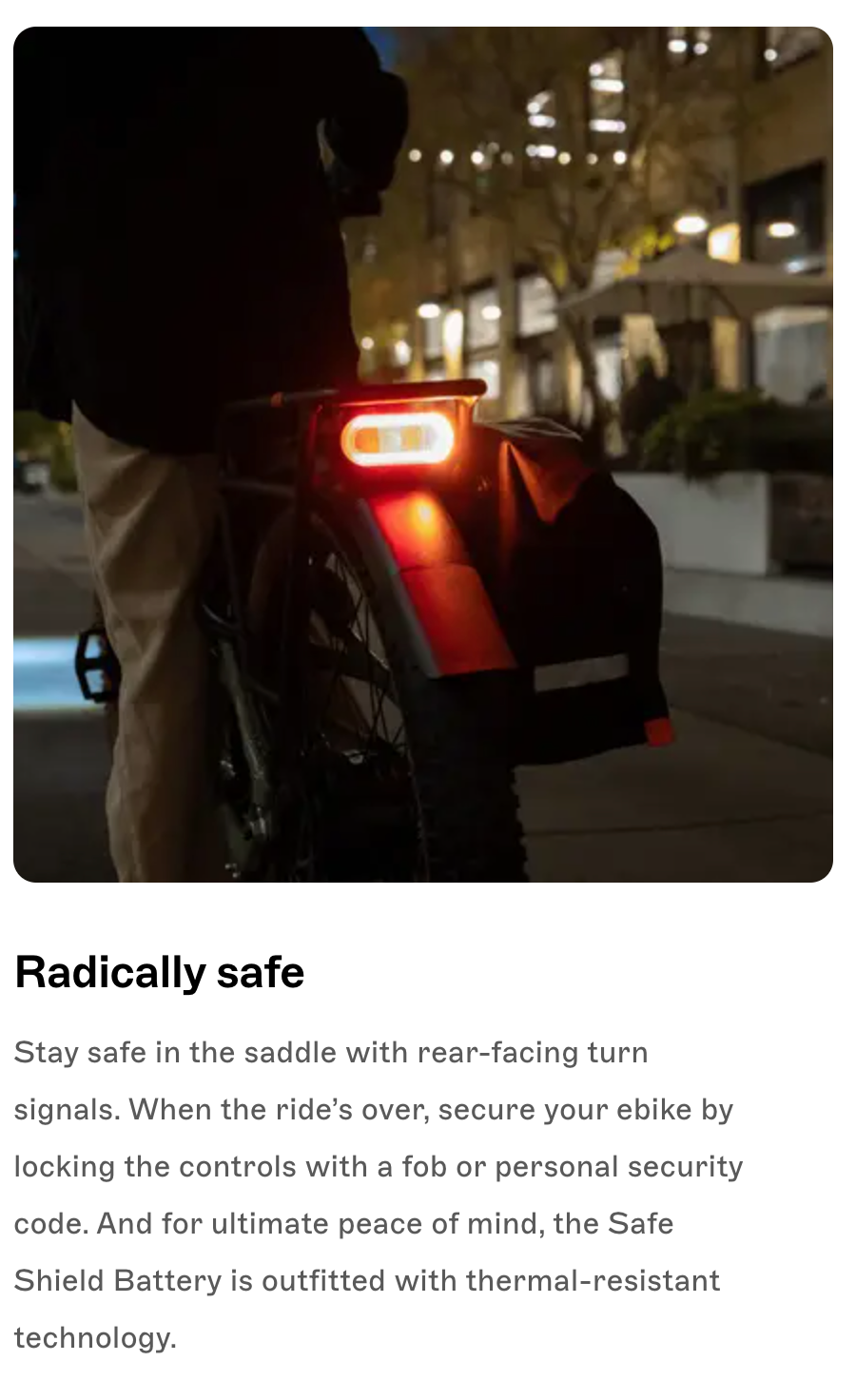

Radically safe

Stay safe in the saddle with rear-facing turn signals. When the ride’s over, secure your ebike by locking the controls with a fob or personal security code. And for ultimate peace of mind, the Safe Shield Battery is outfitted with thermal-resistant technology.

Electronics

---

• Battery

  15Ah 720 Wh Safe Shield Advanced Semi-Integrated Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271

• Charger

  48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets

• Class

  Class switchable 1 to 3. Ships in Class 2 status.

• Display

  Rad custom color display. See Display section below for details.

• Hub Motor

  Rear hub 750W, 100 Nm torque
  Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.

• Lights

  Auto-on feature
  Front: ~200 lumens LED headlight with built-in reflector
  Rear: Integrated taillight with brake light and turn signals

• Pedal Assist

  Torque sensor, 5 PAS Levels, plus a zero assist option

• Range

  Estimated 25-65 miles per charge

• Throttle

  Half twist throttle

• USB Ports

  One USB-C port, located on remote

To ensure uninterrupted shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.

Components

---

• Bell

  Yes

• Brake System

  Tektro Hydraulic Disc E350

• Brake Pads

  Tektro semi-metallic P20.11

• Brake Rotors

  180mm x 1.8mm

• Crank Set

  50T with dual sided chain ring cover, 170mm crank arms

• Derailleur

  Shimano 8-speed

• Fenders

  Front and full rear alloy mudguard

• Fork

  SR Suntour hydraulic suspension fork, 80mm travel, tapered steerer tube, thru axle

• Frame

  Aluminum

• Freewheel/Cassette

  8-speed freewheel 11-34T

• Gearing

  1x8 speed

• Grips

  Ergonomic rubber comfort grips

• Handlebar

  Aluminum, 710mm wide

• Kickstand

  Side mounted, adjustable angle kickstand

• Pedals

  Alloy Platform, Boron axle with reflectors, standard 9/16" X 20 TPI threading

• Rear Rack

  Integrated, 55 lb (25 kg) carrying capacity

• Saddle

  Padded sport saddle with shallow anatomic cut-out and contoured sides

• Seatpost

  Regular: 350 mm x 31.6 mm
  Large: 400 mm x 31.6 mm

• Seatpost Clamp

  38.1 mm

• Shifter

  Shimano 8-speed thumb shifter

• Stem

  40mm A-head

• Tires

  Kenda Havok 27.5" X 3.0" with puncture protection and tan sidewall

To ensure uninterrupted shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.

Geometry

---

 Regular Large

Title	Text
Rider Heights	4'11"-5'8" (150-173 cm)
Bike Weight	77.5 lb (35.2 kg), 68.5 lb (31.1 kg) with battery removed
Payload	370 lb, 290 lb. max rider
Rear Rack Payload	55 lb (25 kg)
Handlebar Height	44.5" (113.0 cm)
Reach	15.2" (386 mm)
Seat Height	From ground: 30.5" - 37.5" (78.7 - 95.3 cm) From pedal bottom stroke: 25" - 33" (64 - 84 cm)
Standover Height	21" (53.3 cm)
Stepover Height	20" (50.8 cm)
Total Length	74" (188 cm)
Wheelbase	46.6" (118.3 cm)
Seat Tube Length	15.0" (380 mm)

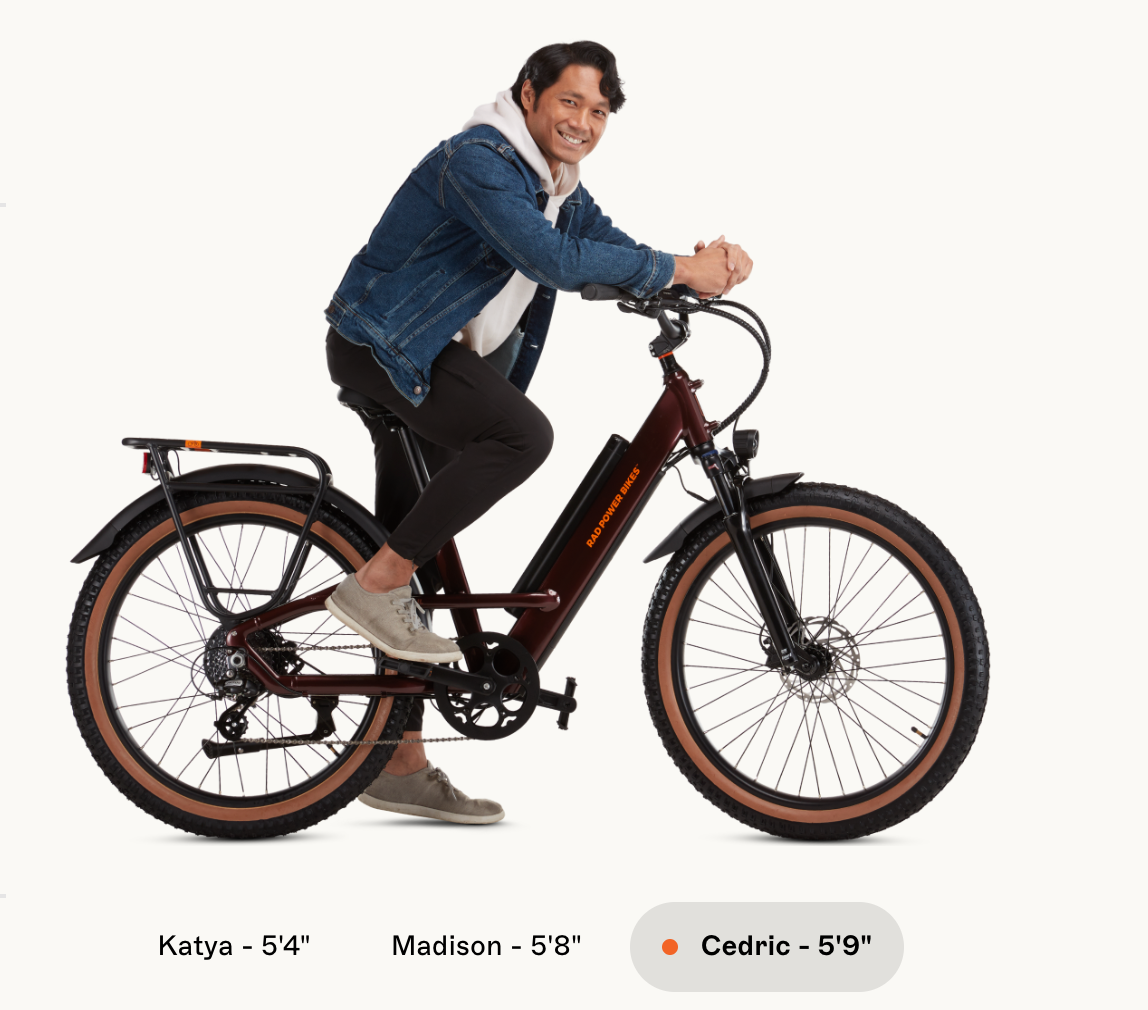

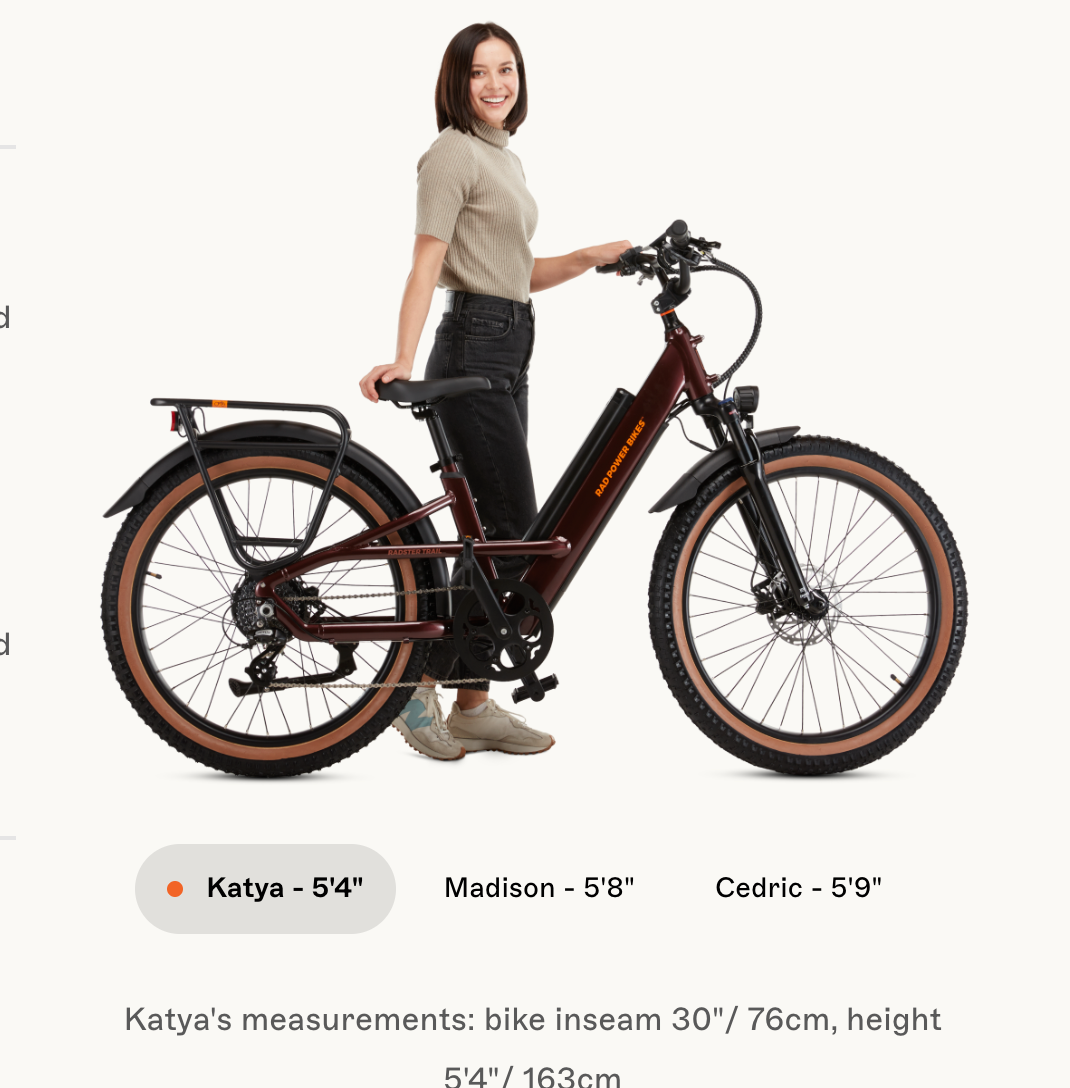

Sizing

---

 RegularLarge

Bike inseam sizing chart(Inches)

23 - 25"

25 - 33"

33+"

You will not be able to ride the bike comfortably.

You will be able to pedal and stand over the frame comfortably.

Your legs may be too long to get full leg extension when pedaling.

What to Measure

Your “bike inseam” — or inside leg length — is the distance between your body where it sits on your bike saddle and the ground.

It’s typically an inch or two longer than the length of your trousers, but measure to be sure.

You’ll use this number on the chart to get a feel for how the different models will fit you.

How to Measure

Gather the tools needed:

Medium-width hardcover book
Tape measure
A wall you can stand against
A trusted friend or relative

Wearing your regular riding shoes and with your back to the wall, stand with your feet spread so there is about 7 inches between them - this is about the distance apart your feet would be when straddling a bike with your feet on the ground (standover height).

Place a hardcover book against the wall with the spine of the book facing upward. Slide the book upwards towards your groin until it is solidly against your body. This may be a bit awkward, but is way more comfortable — and safer! — than trying to ride a bike that is too big.

If you have a buddy helping you, get them to measure from the floor to the top of the book spine while you hold the book in place. If you’re going it alone, carefully hold the book in place and measure from the ground to the top of the book spine.

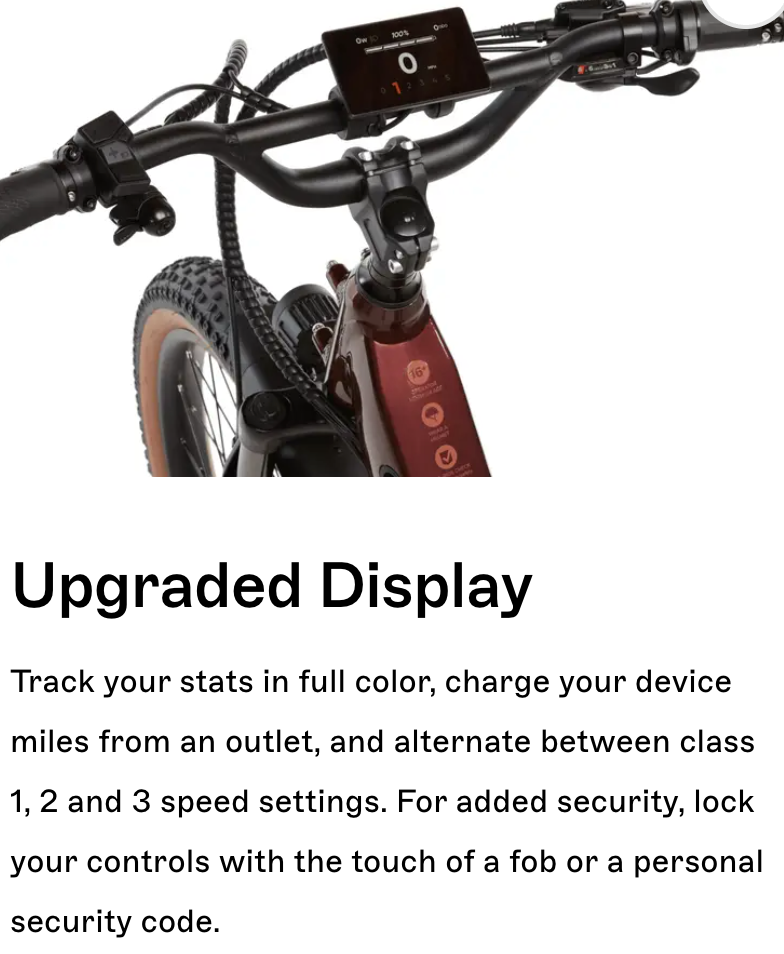

Display

---

• Class level

  Choose speed settings for your ride:
  Class 1: up to 20 mph, throttle only works while pedaling.
  Class 2: up to 20 mph while pedaling or throttling.
  Class 3, Limited: up to 25 mph while pedaling.
  Class 3: up to 28 mph while pedaling.

  Remember: adhere to posted speed limits and check local regulations for any speed or ebike class restrictions on the road or trail you're using.

• Control lock

  For an extra layer of security, lock and unlock the controls with the touch of a fob or a personal security code
